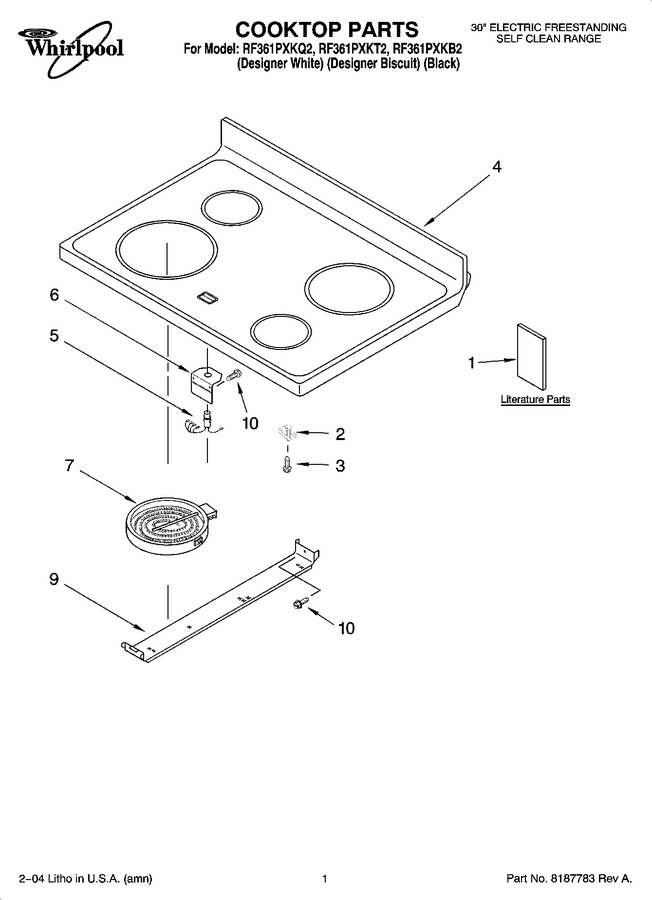

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9757983 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8523048 | Literature Parts (installation Instr (template)) |
|
- | |||||
| 1 | LIT8522770 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT9757347 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | 9755833 | Cooktop (biscuit) |
|
- | |||||
| 4 | 9755823 | Cooktop (white) |
|
- | |||||
| 4 | 9755824 | Cooktop (black) |
|
- | |||||
| 5 | 8523740 | Light, Indicator (hot Surface) |
|
- | |||||
| 6 | 8524063 | Bracket, Ind Light |
|
- | |||||
| 7 | WPW10242957 | Element, Surface (2000w - Lf & Rr) (Replaces: 8523695) |
|
$ 332.00 | |||||
| 7 | W10823699 | Element, Surface (1500w - Lr & Rf) (Replaces: 8523697) |
|
Immediately | $ 169.95 | ||||
| 9 | 3196454 | Bracket, Element |
|
- | |||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 |
