Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 7.85

1 313191 End Trim R.h. Appelez-nous -
1 313190 End Trim L.h. Appelez-nous -
1 WP3390631 Screw, 10a X 3/8 (2)   (Replaces: 309112) Special Order $ 7.82

2 313231 End Cap L.h. Appelez-nous -
2 254225 Screw, 8bt X 1/4 (4) Appelez-nous -
2 313230 End Cap R.h. Appelez-nous -
3 WP965173 Screw, 8a X 3/8 (2)   (Replaces: 246132) In-Stock Immediately $ 10.72

3 3149834 Timer, Auto Appelez-nous -
4 313513 Glass, Timer Appelez-nous -
5 312604 Screw 8-18 X 5/8 (4) Appelez-nous -
5 WP681414 Screw 10-32 X 1/2   (Replaces: 690989) In-Stock Immediately $ 7.85

5 3148835 Panel, Control Appelez-nous -
7 WP486579 Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865) Special Order $ 7.34

7 5500-287 Switch, Infinite (8`` Unit (1))   (Replaces: 3148953) In-Stock Immediately $ 52.39

7 5500-287 Switch, Infinite (6`` Unit (3))   (Replaces: 3148951) In-Stock Immediately $ 52.39

8 WP965173 Screw, (2) No.8 X .31   (Replaces: 3150344) In-Stock Immediately $ 10.72

8 3148419 Switch, Selector (5 Position) Appelez-nous -
9 3148933 Thermostat, Oven Pyro Special Order $ 181.60

9 WP313808 Screw, 6-32 X 1/4 (2)   (Replaces: 311932) Special Order $ 7.60

10 313102 Light, Indicator (surface Unit (2) (includes Illus. 15)) Special Order $ 66.48

10 314031 Light, Indicator (oven Heating) Special Order $ 62.88

10 3148719 Light, Indicator (locked) Appelez-nous -
11 WP3149983 Knob, Control (4) (surface Unit)   (Replaces: 3149983) Special Order $ 23.23

12 3149988 Knob, Control (thermostat) Appelez-nous -
13 313570 Tube Clip Appelez-nous -
14 313195 Rear Cover Control Panel Appelez-nous -
14 WP681414 Screw, 10-16 X 1/2 (8)   (Replaces: 343641) In-Stock Immediately $ 7.85

15 313101 Lens, Amber (5) Appelez-nous -
16 313311 Spring, Knob Appelez-nous -
16 330206 Knob, Timer (3) Appelez-nous -
17 WP965173 Screw, 8a X 3/8 (2)   (Replaces: 246132) In-Stock Immediately $ 10.72

17 313608 Shield, Glass (2) Appelez-nous -
18 3149986 Knob, Control Special Order $ 23.95


    View Diagram in Separate Window     Print Icon   Print Part List

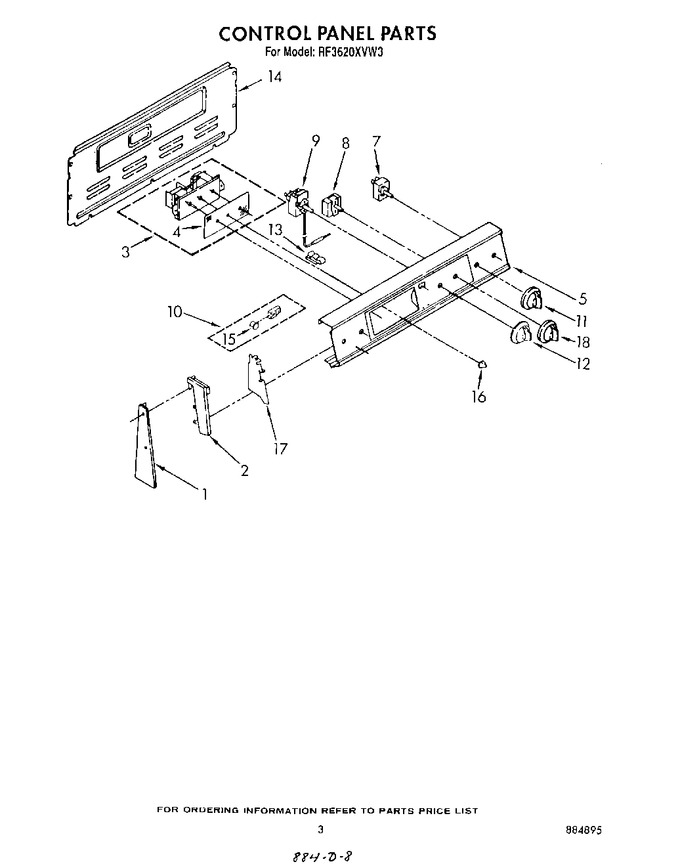

Diagram for RF3620XVW3
