SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Oven


04 - Door And Drawer


05 - Unit, Optional


06 - Wiring Harness, Literature

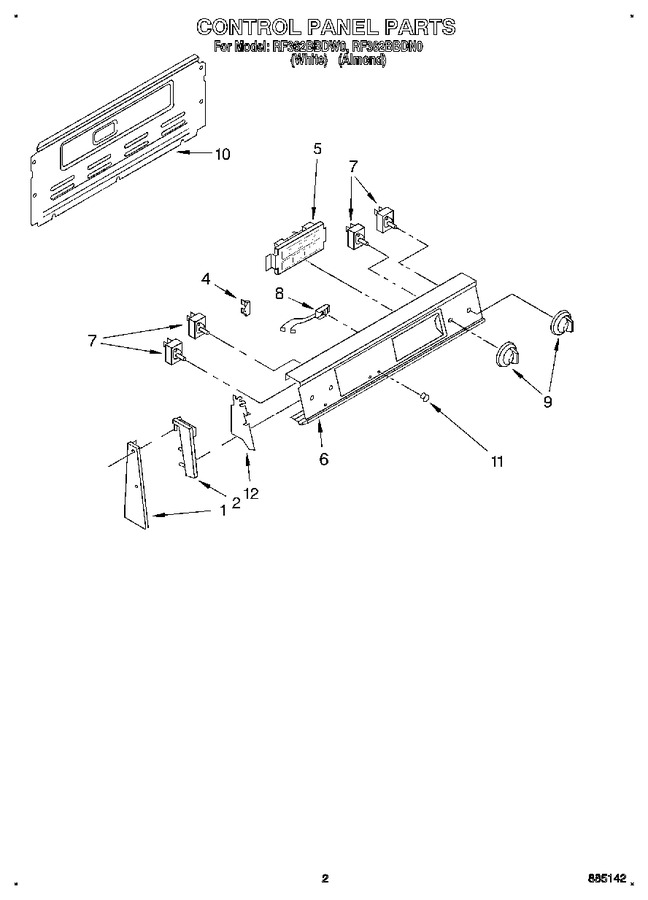

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187671		End Trim R.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
1	3187672		End Trim L.h.		Appelez-nous	-
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 7.82
2	3187792		End Cap L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	3187791		End Cap R.h.		Appelez-nous	-
4	3187848		Fuse		Appelez-nous	-
5	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
5	3195182		Timer, Electronic		Appelez-nous	-
6	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
6	3188687		Panel, Control		Appelez-nous	-
7	WP3148952		Switch, Infinite (6`` (2))   (Replaces: 3148952)			Immediately	$ 69.51
7	WP3149400		Switch, Infinite (8`` (2))   (Replaces: 3148954)			Immediately	$ 90.51
7	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
8	3169457		Indicator Light (2)		Appelez-nous	-
9	WP3196231		Knob (4)   (Replaces: 3188721)			Immediately	$ 20.95
10	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
10	3187332		Rear Cover		Appelez-nous	-
11	313101		Lens, Amber (2)		Appelez-nous	-
12	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
12	313608		Shield, Glass (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
