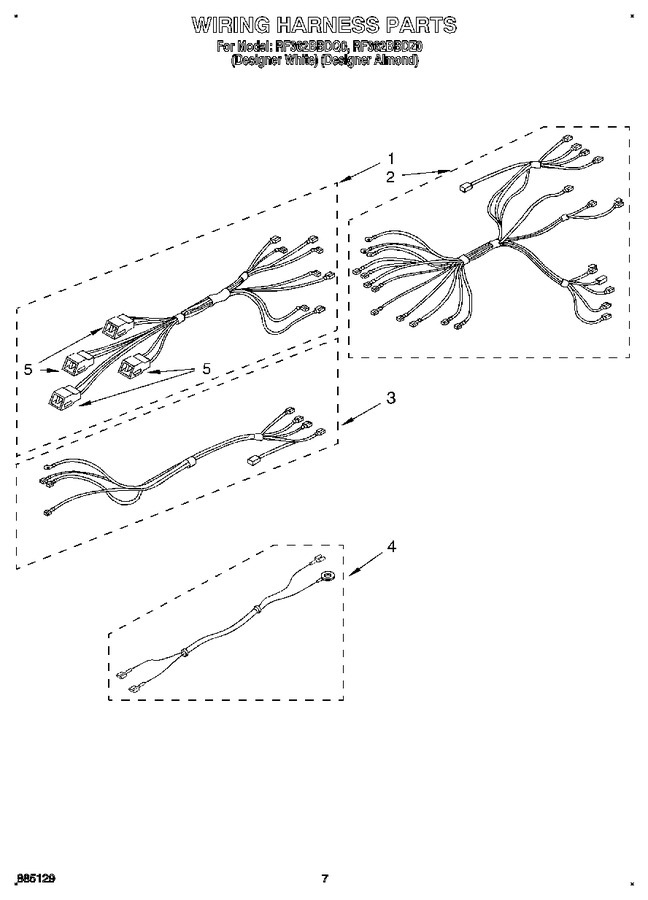

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3149881 | Wiring Harness (suface Unit) |
|
- | |||||
| 2 | 3169540 | Wiring Harness (oven) |
|
- | |||||
| 3 | 3169508 | Harness, Wire (lock Switch) |
|
- | |||||
| 4 | 313154 | Harness, Wire (oven Light) |
|
- | |||||
| 5 | 330031 | Receptacle |
|
Immediately | $ 16.09 | ||||
| LIT677973 | Manual, Range (do It Yourself) |
|
- | ||||||
| LIT3187321 | Instructions, Installation |
|
- | ||||||
| LIT3150400 | Installation Instr (templet) |
|
- | ||||||
| LIT3169518 | Wiring Diagram |
|
- | ||||||
| LIT3189076 | Guide, Use & Care |
|
- |
