01 - Cooktop Parts

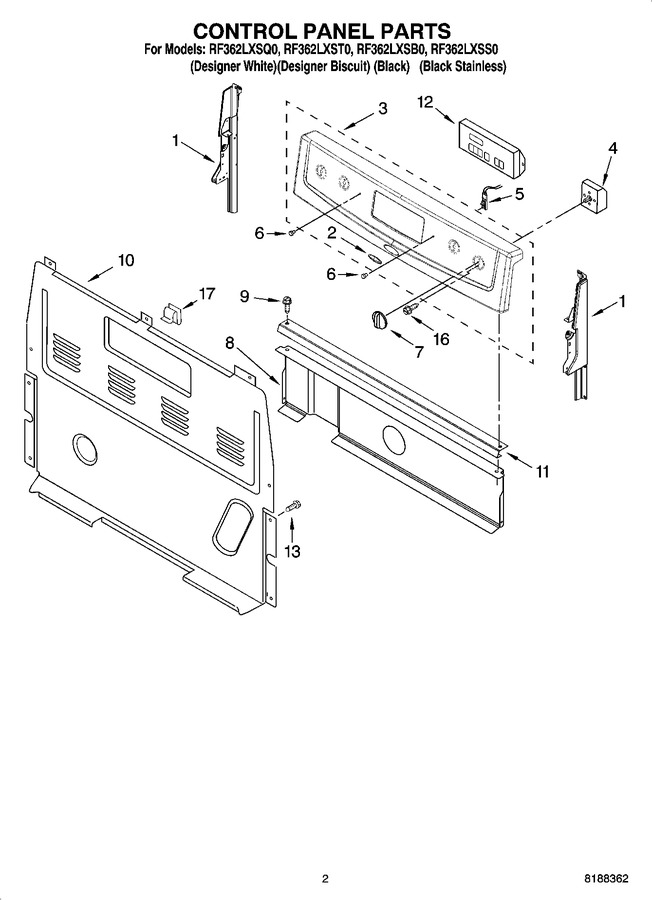

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11230612 | Endcap (biscuit Right) (Replaces: W10009070) |
|
- | |||||
| 1 | W11219664 | Endcap (black Left) (Replaces: W10009080) |
|
$ 153.83 | |||||
| 1 | W11219665 | Endcap (black Right) (Replaces: W10009090) |
|
$ 45.17 | |||||
| 1 | W11219365 | Endcap (white Left) (Replaces: W10009040) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (white Right) (Replaces: W10009050) |
|
$ 60.83 | |||||
| 1 | W10009060 | Endcap (biscuit Left) |
|
- | |||||
| 2 | 9757609 | Nameplate |
|
$ 33.27 | |||||
| 3 | 9762026 | Panel, Control (stainless) |
|
- | |||||
| 3 | 9762025 | Panel, Control (black) |
|
- | |||||
| 3 | 9762024 | Panel, Control (biscuit) |
|
- | |||||
| 3 | 9762023 | Panel, Control (white) |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | WP3149400 | Switch, Infinite (right Front) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 4 | WP9758060 | Switch, Infinite (left Front) (Replaces: 9758060) |
|
Immediately | $ 83.13 | ||||
| 5 | WP8523265 | Light, Ind. (2) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Light (2) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WP9761964 | Knob, Infinite (4) (black) (Replaces: 9761964) |
|
Immediately | $ 22.30 | ||||
| 7 | WP9761962 | Knob, Infinite (4) (white) (Replaces: 9761962) |
|
Immediately | $ 20.65 | ||||
| 7 | WP9761963 | Knob, Infinite (4) (biscuit) (Replaces: 9761963) |
|
$ 20.78 | |||||
| 8 | 8523280 | Shield, Heat |
|
- | |||||
| 9 | 3196166 | Screw |
|
$ 7.36 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | 9762095 | Brkt-mntg, Console |
|
- | |||||
| 12 | 9762186 | Control, Range (biscuit) |
|
- | |||||
| 12 | 9762185 | Control, Range (black) |
|
- | |||||
| 12 | 9762184 | Control, Range (white) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.66 |
