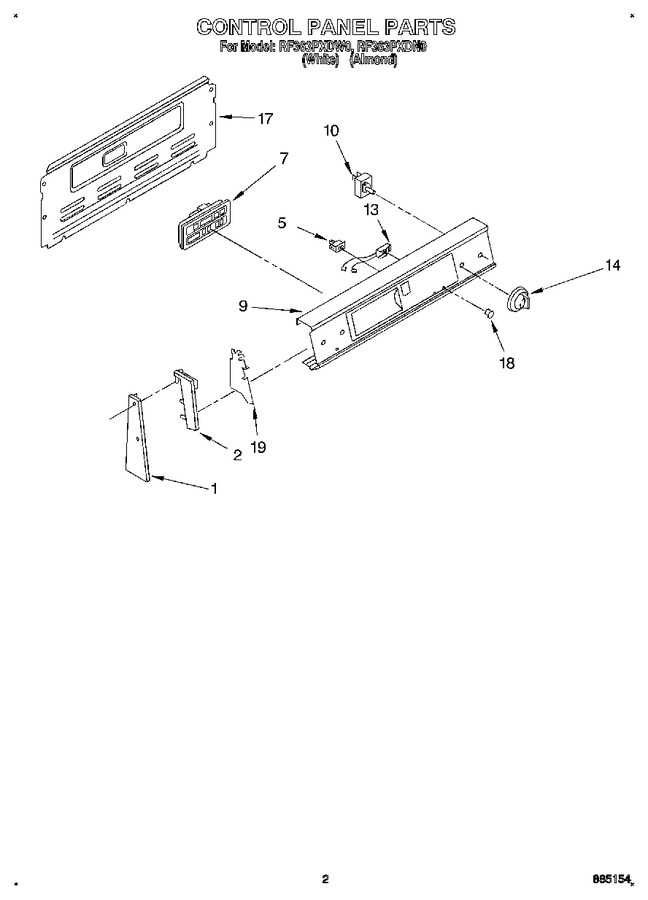

01 - Cooktop
02 - Control Panel
03 - Door And Drawer
04 - Unit
05 - Oven
06 - Wiring Harness, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3187672 | End Trim (black, Lh) |
|
- | |||||
| 1 | 3187671 | End Trim (black, Rh) |
|
- | |||||
| 2 | WP965173 | End Cap (screw (2)) (Replaces: 3150344) |
|
Immediately | $ 11.87 | ||||
| 2 | 3187792 | End Cap (black, Lh) |
|
- | |||||
| 2 | 3187791 | End Cap (black, Rh) |
|
- | |||||
| 5 | 3182717 | Switch, Rocker (black) |
|
- | |||||
| 7 | 3189494 | Timer, Erc Control (black) |
|
- | |||||
| 9 | 3189818 | Panel, Control (black) |
|
- | |||||
| 9 | 3169366 | Panel, Control (screw, 8-18 X 5/8 (4)) |
|
- | |||||
| 10 | WP3148952 | Switch, Infinite (6`` Unit (2)) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 10 | 308119 | Switch, Infinite (screw, 8-32 X 1/4 (8)) |
|
- | |||||
| 10 | WP3149400 | Switch, Infinite (8`` Unit (2)) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 13 | 3169457 | Indicator Light (2) |
|
- | |||||
| 14 | WP3196231 | Knob, Infinite (4) (black) (Replaces: 3188721) |
|
Immediately | $ 22.00 | ||||
| 17 | 3187332 | Rear Cover Control Panel |
|
- | |||||
| 17 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 18 | 313101 | Lens, Amber (2) |
|
- | |||||
| 19 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 11.87 | ||||
| 19 | 313608 | Shield, Glass (2) |
|
- |
