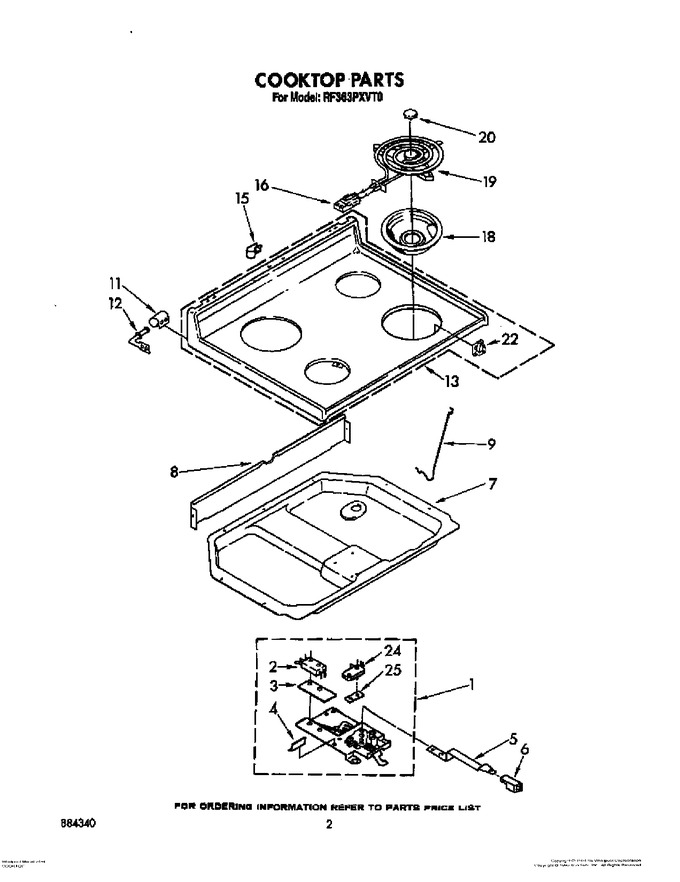

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
1	3171148		Latch & Switch Assembly		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Latch Terminal		Appelez-nous	-
4	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
5	3147065		Handle, Latch		Appelez-nous	-
6	155023		Screw (1)			Immediately	$ 7.91
6	3148684		Knob, Latch		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 8.25
7	3149194		Box, Burner		Appelez-nous	-
8	307973		Shield, Wiring		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
9	3148659		Rod, Cooktop (2)		Appelez-nous	-
11	307965		Bracket (2)		Appelez-nous	-
11	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 8.47
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
12	307966		Pin, Cooktop (2)		Appelez-nous	-
13	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
13	3148433		Cooktop (chrome)		Appelez-nous	-
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 11.76
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
16	330031		Receptacle, Clip (4)   (Replaces: 312606)			Immediately	$ 16.09
16	WP313808		Screw (4)   (Replaces: 313808)				$ 8.30
18	W10196405RW		Pan, Reflector (8`` Element (2))   (Replaces: 3148358)			Immediately	$ 21.82
18	WPW10196406		Pan, Reflector (6`` Element (2))   (Replaces: 3148357)			Immediately	$ 13.39
19	WP660533		Unit, Surface (8`` Element (2) (includes No.20))   (Replaces: 660530)			Immediately	$ 43.86
19	WP660532		Unit, Surface (6`` Element (2))   (Replaces: 660528)			Immediately	$ 41.00
20	309195		Medallion (4)		Appelez-nous	-
22	814103		Hold Down Clip (4)   (Replaces: 3148790)				$ 10.52
22	814102		Nut (4)				$ 5.27
22	00487887		Screw (4)   (Replaces: 487887)				$ 244.80
24	3148669		Switch, Lock Indicator		Appelez-nous	-
25	3147864		Insulator		Appelez-nous	-
	LIT3148056		Instructions, Installation		Appelez-nous	-
	LIT884340		List, Parts		Appelez-nous	-
	LIT313358		Book, Cooking		Appelez-nous	-
	LIT3148538		Guide, Use & Care		Appelez-nous	-
