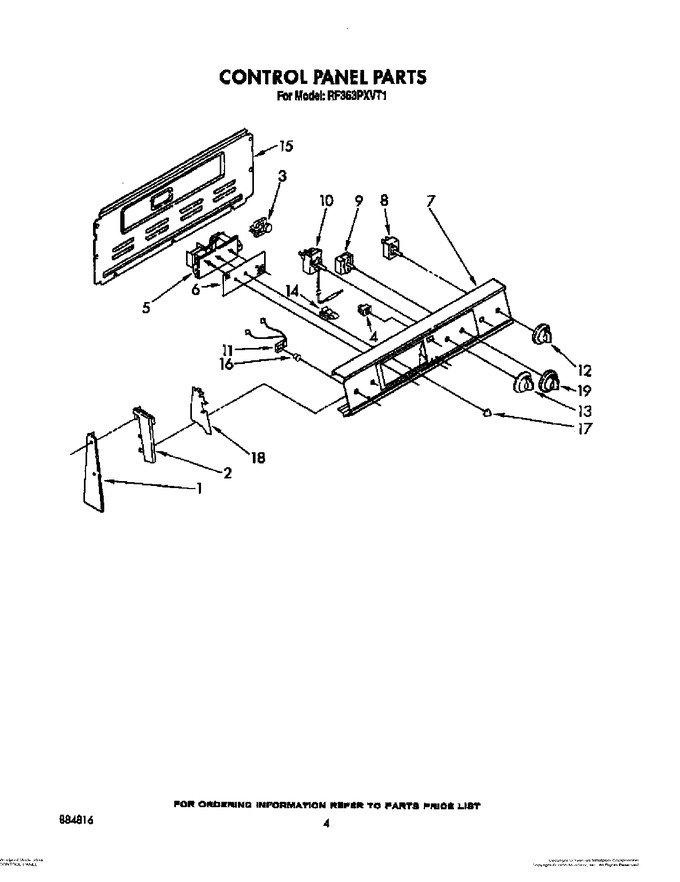

03 - Control Panel
04 - Oven
05 - Door And Drawer
06 - Oven (continued), Optional
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313190 | End Trim L.h. |
|
- | |||||
| 1 | WP681414 | Screw, 10-16 X 1/2 (6) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 1 | 313191 | End Trim R.h. |
|
- | |||||
| 2 | 313230 | End Cap R.h. |
|
- | |||||
| 2 | 313231 | End Cap L.h. |
|
- | |||||
| 2 | 254225 | Screw, 8bt X 1/4 (4) |
|
- | |||||
| 3 | 309822 | Motor, Timer |
|
- | |||||
| 4 | WP4314961 | Switch, Rocker (Replaces: 3148564) |
|
$ 93.95 | |||||
| 5 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 11.87 | ||||
| 5 | 3149834 | Timer, Auto |
|
- | |||||
| 6 | 313513 | Glass, Timer |
|
- | |||||
| 7 | 3148836 | Panel, Control |
|
- | |||||
| 7 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 8.47 | ||||
| 7 | 312604 | Screw 8-18 X 5/8 (4) |
|
- | |||||
| 8 | 5500-287 | Switch, Infinite (6`` Element (2)) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 8 | 5500-287 | Switch, Infinite (8`` Element (2)) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 8 | WP486579 | Switch, Infinite (screw, 8-32 X 1/4 (8)) (Replaces: 311865) |
|
$ 7.89 | |||||
| 9 | WP486579 | Screw, 8-32 X 1/4 (2) (Replaces: 311865) |
|
$ 7.89 | |||||
| 9 | 312288 | Switch, Selector (5 Position) |
|
- | |||||
| 10 | 3148933 | Thermostat, Oven Pyro |
|
$ 181.60 | |||||
| 10 | WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 8.30 | |||||
| 11 | 314031 | Light, Indicator (heating) |
|
$ 62.88 | |||||
| 11 | 3148719 | Light, Indicator (locked (includes Illus. 41)) |
|
- | |||||
| 11 | 313102 | Light, Indicator (surface Unit (2)) |
|
$ 66.48 | |||||
| 12 | WP3149983 | Knob, Control (4) (infinite Switch) (Replaces: 3149983) |
|
$ 24.39 | |||||
| 13 | 310410 | Screw (2) |
|
- | |||||
| 13 | 3149988 | Knob, Control (thermostat) |
|
- | |||||
| 14 | 313570 | Tube Clip |
|
- | |||||
| 15 | 313195 | Rear Cover Control Panel |
|
- | |||||
| 15 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 16 | 313101 | Lens, Amber (5) |
|
- | |||||
| 17 | 313311 | Spring, Knob |
|
- | |||||
| 17 | 330206 | Knob, Timer (3) |
|
- | |||||
| 18 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 11.87 | ||||
| 18 | 313608 | Shield, Glass (2) |
|
- | |||||
| 19 | WP688805 | Spring (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 19 | 3149986 | Knob, Control (selector) |
|
$ 23.95 |
