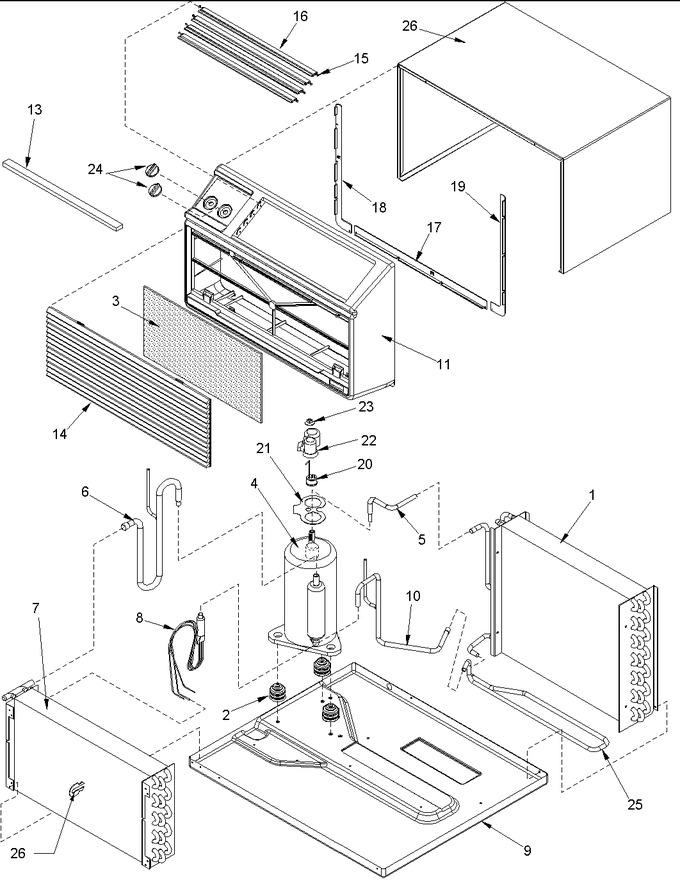

01 - Outer Case And Tubing


02 - Partition And Control Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y3396504		Assy, Cond Coil Tubing		Appelez-nous	-
2	BT1339500		Grommet - Comp		Appelez-nous	-
3	BT1369603		Air Filter		Appelez-nous	-
4	BT9266113		Compressor		Appelez-nous	-
6	Y3393700		Assy, Suction Line		Appelez-nous	-
7	Y3396000		Assy, Tubing Evap Coil 7k		Appelez-nous	-
8	Y3393803		Assy, Cap Tube/strainer		Appelez-nous	-
9	3300000P		Basepan, Thru-wall		Appelez-nous	-
10	3393602		Line, Liquid		Appelez-nous	-
11	BT3375100		Frame-ttw		Appelez-nous	-
13	BT1392616		Gasket, Foam		Appelez-nous	-
14	BT3375200		Grill Return Air		Appelez-nous	-
15	BT1392910		O-ring		Appelez-nous	-
16	BT3375500		Blade, Vent		Appelez-nous	-
17	BT3375300		Spacer, Bottom		Appelez-nous	-
18	BT3375301		Spacer Right		Appelez-nous	-
19	BT3375302		Spacer, Left		Appelez-nous	-
20	BT1243712		Switch, Overload (compressor)		Appelez-nous	-
21	BT1392604		Gasket, Compressor (tec)		Appelez-nous	-
23	BT1393000		Nut, (tecumseh)		Appelez-nous	-
24	BT3075609		Rac Knob		Appelez-nous	-
25	Y3393800		Assy, Liquid Line		Appelez-nous	-
25	3393619		Line, Liquid (lower)		Appelez-nous	-
26	BT1531800		Clip-bulb		Appelez-nous	-
26	SLV-26		Assy, Sleeve		Appelez-nous	-
NI	BT14933341		Label, Control		Appelez-nous	-
