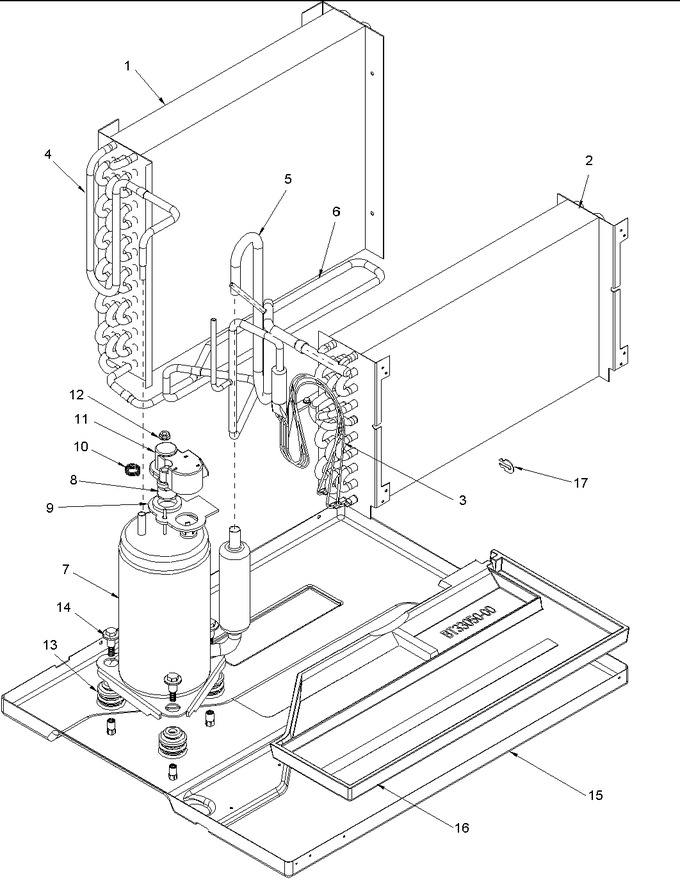

01 - Compressor Assy
02 - Fan And Control Assy
03 - Outer Case Assy
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y3396505 | Assy, Condenser Coil |
|
- | |||||
| 2 | 3396001 | Assy, Tubing Evap Coil 10k |
|
- | |||||
| 3 | Y3393804 | Assy, Cap Tube/strainer |
|
- | |||||
| 4 | 3393624 | Tubing, Compressor |
|
- | |||||
| 5 | Y3393708 | Assy, Suction Line |
|
- | |||||
| 6 | Y3393800 | Assy, Liquid Line |
|
- | |||||
| 7 | BT9266218 | Compressor |
|
- | |||||
| 8 | BT1243725 | Switch, O.l. |
|
- | |||||
| 9 | BT1392619 | Gasket Comp Cap |
|
- | |||||
| 10 | BT1393705 | Spring |
|
- | |||||
| 11 | BT3055504 | Cover, Compressor |
|
- | |||||
| 12 | WP776338 | Nut (Replaces: BT1393008) |
|
$ 18.29 | |||||
| 13 | BT1339500 | Grommet - Comp |
|
- | |||||
| 14 | BT1393704 | Bolt, Comp. Shoulder 5/16-18 |
|
- | |||||
| 15 | 3350200 | Assy, Basepan |
|
- | |||||
| 16 | BT3305000 | Pan, Drain (styrofoam) |
|
- | |||||
| NOTE: | Note: If Replacing Basepan On Older Models It Will Be Necessary To Order New Compressor Bolts. Evap Coil Tubing Assy Includes Cap Tube Assy. For Models With N |
|
- |
