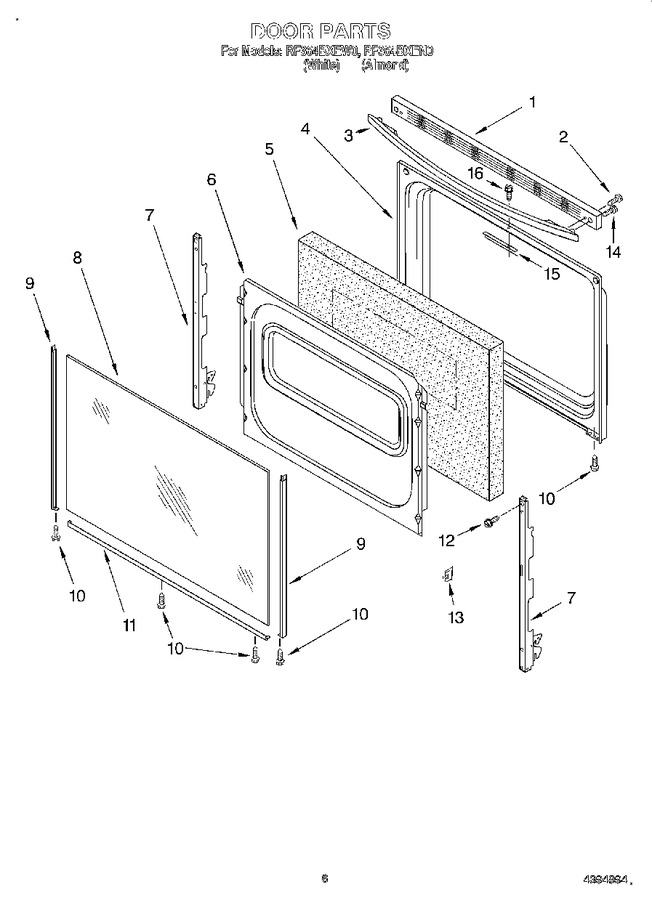

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3195605		Trim, Top		Appelez-nous	-
2	WP3196164		Screw (2)   (Replaces: 3196164)			Immediately	$ 11.03
3	WPW10202217		Handle, Door   (Replaces: 3195922)				$ 270.65
4	3186294		Liner, Door		Appelez-nous	-
5	3186256		Insulation, Door		Appelez-nous	-
6	W11699790		Retainer, Insul.   (Replaces: 3186298)		Appelez-nous	-
7	3196073		Hinge, Door (2)		Appelez-nous	-
8	3195610		Glass, Outer Door		Appelez-nous	-
9	8184858		Trim, Door Side (right Hand)   (Replaces: 3195973)				$ 168.85
9	8184858		Trim, Door Side (left Hand)   (Replaces: 3195976)				$ 168.85
10	W10491985		Screw (9)   (Replaces: 3196160)			Immediately	$ 7.55
11	8184858		Trim, Bottom   (Replaces: 3195424)				$ 168.85
12	238614		Bumper (2)   (Replaces: 3195809)				$ 84.79
13	3196025		Clip, Door Glass				$ 20.10
14	WP179051		Screw, Handle (2)   (Replaces: 3196161)			Immediately	$ 8.42
15	3195914		Bracket, Latch		Appelez-nous	-
16	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
16	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
16	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
16	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
16	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
16	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
16	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
16	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
16	261888		New Avocado		Appelez-nous	-
16	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
16	261890		Harvest Gold		Appelez-nous	-
16	285365		Toast		Appelez-nous	-
16	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
16	285006		Paint, Spray 13 Oz. (black)				$ 59.89
16	350942		Primer (white)   (Replaces: 206922)				$ 94.14
16	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
16	978883		Almond (uncut)		Appelez-nous	-
16	261891		Harvest Gold (uncut)		Appelez-nous	-
16	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
16	285368		Platinum (uncut)		Appelez-nous	-
16	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
16	3184478		Cleaner, Glass		Appelez-nous	-
16	8273888A		Anti-tip Kit   (Replaces: 3176830)				$ 32.62
16	261886		Coffee		Appelez-nous	-
16	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
16	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
16	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
16	WP3400832		Screw (2)   (Replaces: 3196168)			Immediately	$ 8.18
16	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
16	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
16	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
16	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
16	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
16	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
16	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
16	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
16	242831		Wire (14 Ga. 200 C Red)				$ 342.23
16	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
16	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
16	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
16	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
16	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
16	261582		Grease		Appelez-nous	-
16	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	3196387		Harness, Wire (cooktop)		Appelez-nous	-
	3196151		Harness, Wire (oven)		Appelez-nous	-
	WP3196154		Screw, Ground   (Replaces: 3196154)				$ 8.44
	W11244557		Screw   (Replaces: 3196173)				$ 14.29
	313660		Clip, Ground Wire		Appelez-nous	-
	3184020		Wire, Ground   (Replaces: 311227)				$ 86.92
	3400964		Clip, Wire Harness   (Replaces: 3196520)				$ 89.00
	3196132		Harness, Wire (oven Light)		Appelez-nous	-
	3196108		Harness, Wire (door Switch)		Appelez-nous	-
	LIT3195944		Instructions, Installation		Appelez-nous	-
	LIT3195945		Installation Instr (templet)		Appelez-nous	-
	LIT3196276		Guide, Use & Care		Appelez-nous	-
	LIT3196148		Tech Sheet		Appelez-nous	-
	3196696		Clip, Wire Harness		Appelez-nous	-
