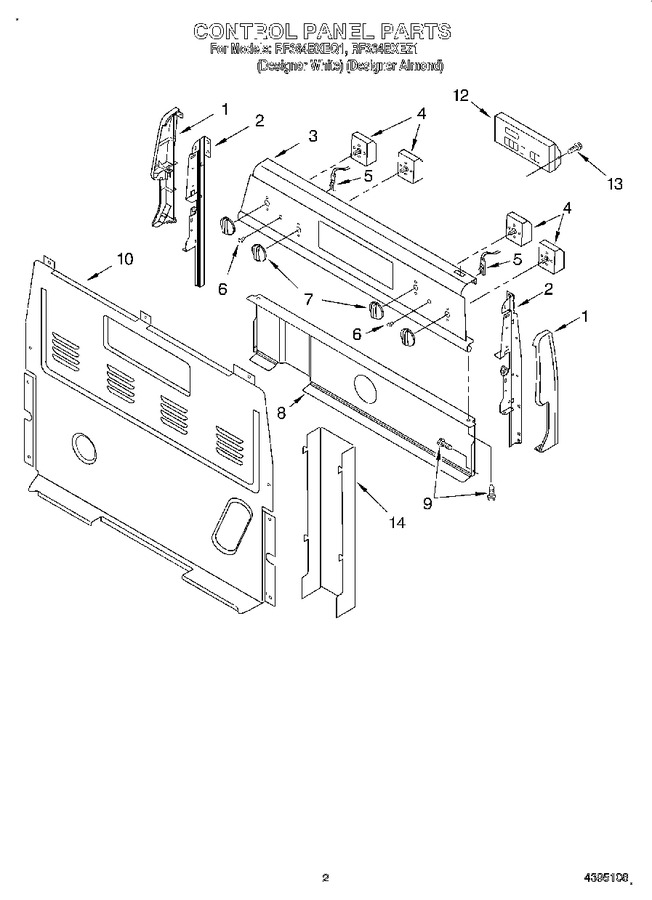

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186190		Endcap (left Hand White)		Appelez-nous	-
1	3186191		Endcap (right Hand White)		Appelez-nous	-
1	3186192		Endcap, Left Hand (almond)		Appelez-nous	-
1	3186193		Endcap (right Hand Almond)		Appelez-nous	-
1	W11233072		Endcap (screw (2))   (Replaces: 3196178)			Immediately	$ 14.72
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
3	3186166		Panel, Backguard (almond)		Appelez-nous	-
3	3186165		Panel, Backguard (white)		Appelez-nous	-
4	3196171		Switch, Infinite (screw (8))		Appelez-nous	-
4	WP3148952		Switch, Infinite (right Front)   (Replaces: 3148952)			Immediately	$ 69.51
4	5500-287		Switch, Infinite (right Rear)   (Replaces: 3148953)			Immediately	$ 52.39
5	313102		Light, Ind. (2)				$ 66.48
6	WP3196068		Lens, Light (2)   (Replaces: 3196068)			Immediately	$ 6.26
7	3196233		Knob, Infinite (4) (almond)				$ 15.63
7	3196232		Knob, Infinite (4) (white)				$ 16.71
8	3195212		Shield, Heat		Appelez-nous	-
9	W10276642		Screw (4)   (Replaces: 4449746)				$ 6.41
10	W11233072		Screw (9)   (Replaces: 3196178)			Immediately	$ 14.72
10	WP8272473		Cover, Upper   (Replaces: 3195163)				$ 219.04
12	3195170		Control, Range (almond)		Appelez-nous	-
12	3195169		Control, Range (white)		Appelez-nous	-
13	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
14	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
14	WPW10326122		Box, Cover   (Replaces: 3195133)				$ 139.60
