01 - Cooktop

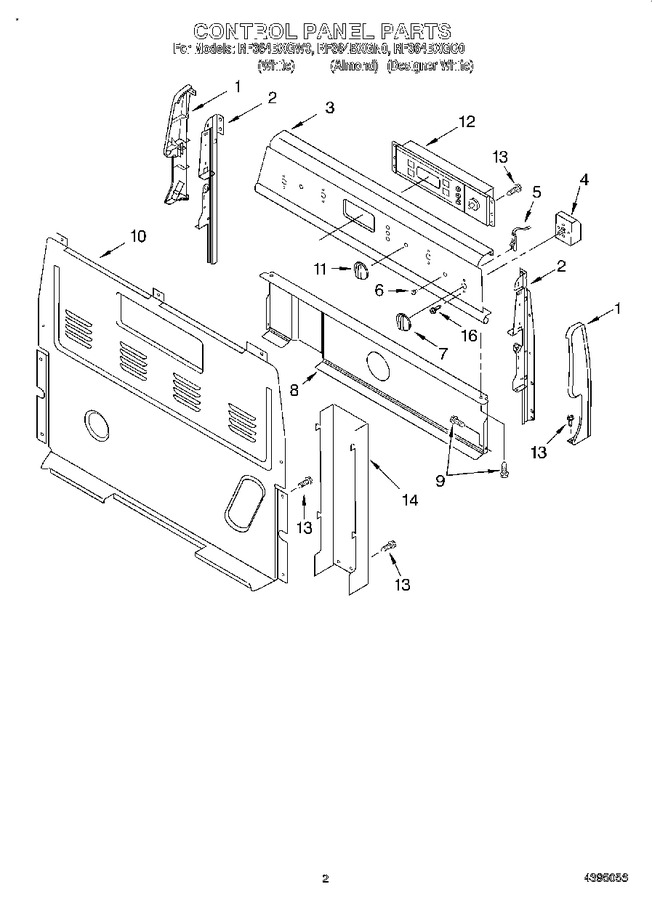

02 - Control Panel
03 - Chassis
04 - Drawer & Broiler
05 - Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186188 | Endcap (black Left Hand) |
|
- | |||||
| 1 | 3186189 | Endcap, Right Hand (black) |
|
- | |||||
| 1 | 3186190 | Endcap (white Left Hand) |
|
- | |||||
| 1 | 3186191 | Endcap (white Right Hand) |
|
- | |||||
| 2 | 3186198 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 3186199 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 8053612 | Panel, Backguard (white) |
|
- | |||||
| 3 | 8053611 | Panel, Backguard (black) |
|
- | |||||
| 4 | WP3148952 | Switch, Infinite (right Front) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 5 | 313102 | Light, Indicator (surface Unit (2)) |
|
$ 66.48 | |||||
| 6 | WP3196068 | Lens, Light (2) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WP3196231 | Knob, Infinite (4) (black) (Replaces: 3196231) |
|
Immediately | $ 22.00 | ||||
| 7 | 3196232 | Knob, Infinite (4) (white) |
|
$ 16.71 | |||||
| 8 | 3195212 | Shield, Heat |
|
- | |||||
| 9 | W10276642 | Screw (Replaces: 4449746) |
|
$ 6.41 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 3195163) |
|
$ 219.04 | |||||
| 11 | 8053351 | Knob, 150 Control (black) |
|
- | |||||
| 11 | 8053352 | Knob, 150 Control (white) |
|
- | |||||
| 12 | 3196968 | Control-range (white) |
|
- | |||||
| 12 | 3196967 | Control, Range (black) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WPW10326122 | Box, Cover (Replaces: 3195133) |
|
$ 139.60 | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 |
