Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 312604 Screw 8-18 X 5/8 (4) Appelez-nous -
1 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

1 3183090 End Trim R.h. Appelez-nous -
1 3183091 End Trim L.h. Appelez-nous -
2 254225 Screw (4) Appelez-nous -
2 313230 End Cap R.h. Appelez-nous -
2 313231 End Cap L.h. Appelez-nous -
3 313608 Shield, L. Or R. Appelez-nous -
3 WP965173 Screw, (2) 8a X 3/8   (Replaces: 246132) In-Stock Immediately $ 11.87

5 313101 Lens, Light (2) Appelez-nous -
6 3195183 Electronic Control (designer White Mdl) Appelez-nous -
6 3195182 Electronic Control (white/almond Mdl.) Appelez-nous -
6 WP965173 Electronic Control (screw (2))   (Replaces: 246132) In-Stock Immediately $ 11.87

8 3169212 Control Panel (white/almond Mdl.) Appelez-nous -
8 3169213 Control Panel (designer White Mdl) Appelez-nous -
9 WP3149400 Switch, Infinite (8`` Unit (2))   (Replaces: 3148954) In-Stock Immediately $ 90.51

9 5500-287 Switch, Infinite (6`` Unit (2))   (Replaces: 3148951) In-Stock Immediately $ 52.39

9 308119 Switch, Infinite (screw, 8-32 X 1/4 (8)) Appelez-nous -
10 3147832 Adapter, Terminal Appelez-nous -
12 3169457 Indicator Light (burners) Appelez-nous -
12 3169439 Indicator Light (oven) Appelez-nous -
13 3182718 Switch, Rocker (designer White Mdl) Appelez-nous -
13 3182717 Switch, Rocker (white/almond Mdl.) Appelez-nous -
14 3183118 Knob, (4) Infinite Switch (white/almond Mdl.) Special Order $ 23.04

14 WP681414 Knob, (4) Infinite Switch (screw, 10-16 X 1/2 (2))   (Replaces: 343641) In-Stock Immediately $ 8.47

14 3183117 Knob, (4) Infinite Switch (designer White Mdl) Special Order $ 24.34

16 3187332 Rear Cover Control Panel Appelez-nous -
16 WP681414 Screw, 10-16 X 1/2 (12)   (Replaces: 343641) In-Stock Immediately $ 8.47

18 98520 Screw (1) Appelez-nous -
18 3187848 Fuse, Thermal Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

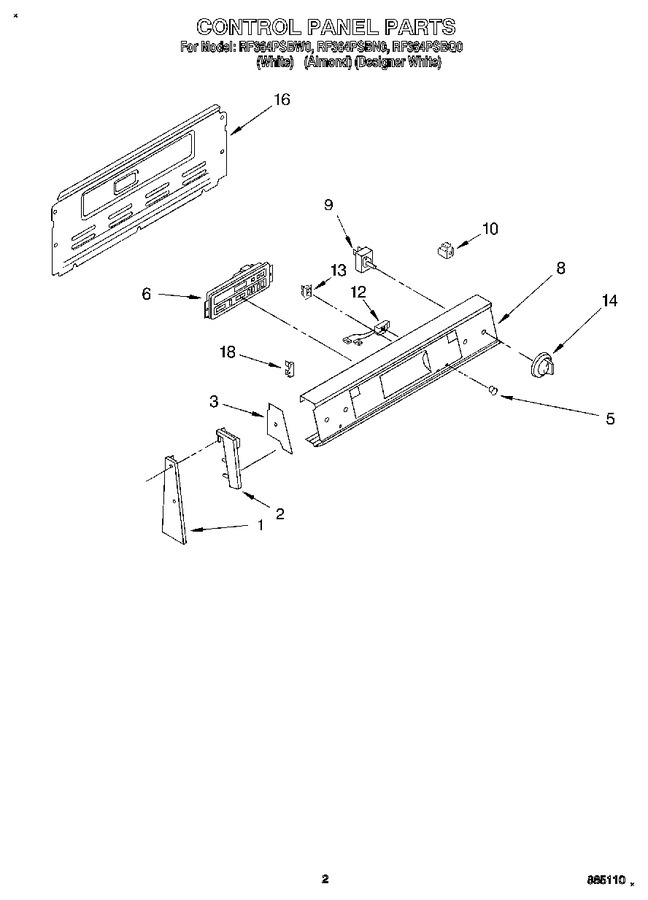

Diagram for RF364PSBW0
