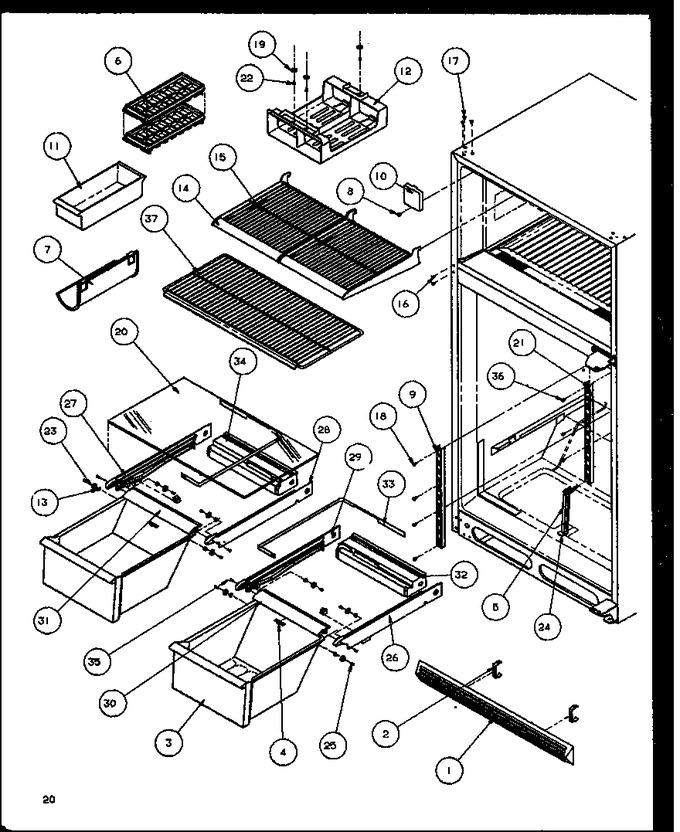

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10474901 | Grille, Toe (18) |
|
- | |||||
| 2 | 10551501 | Clip-toe Grille |
|
- | |||||
| 3 | 10430210 | Pan, Crisper |
|
- | |||||
| 4 | 10447401 | Slide, Crisper |
|
- | |||||
| 5 | 10461901 | Post, Crisper Support |
|
Immediately | $ 25.85 | ||||
| 6 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 8 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| 9 | D7599002 | Ladder, Center |
|
- | |||||
| 10 | D7874402 | Cover-fl Tb/plug |
|
- | |||||
| 11 | 10423121 | Bin, Ice |
|
- | |||||
| 16 | M0310724 | Plug |
|
- | |||||
| 16 | M0310714 | Plug |
|
- | |||||
| 16 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 5.98 | ||||
| 17 | M0310716 | Plug |
|
- | |||||
| 17 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 5.98 | ||||
| 17 | M0310720 | Plug |
|
- | |||||
| 18 | M0230923 | Screw |
|
- | |||||
| 20 | 10370016 | Glass, Shelf (18) |
|
- | |||||
| 21 | D7599105 | Ladder, Side |
|
- | |||||
| 24 | 10571401 | Shim, Crisper Support |
|
- | |||||
| 26 | 10432701 | Rail, Side Crisper |
|
- | |||||
| 27 | 10432702 | Rail, Side Crisper |
|
- | |||||
| 28 | 10432801 | Rail, Ctr. Crisper |
|
- | |||||
| 29 | 10432802 | Rail, Ctr. Crisper |
|
- | |||||
| 30 | 10450223 | Extr, Crisper Front |
|
- | |||||
| 31 | 10450216 | Extr. Crisper Front (18-19) |
|
- | |||||
| 32 | 10433802 | Rail, Crisper Back |
|
- | |||||
| 33 | 10467802 | Band, Crisper Control (18-19) |
|
- | |||||
| 34 | 10435602 | Rail, Crisper Back |
|
- | |||||
| 35 | WPW10348409 | M0237921 (Replaces: M0238019) |
|
Immediately | $ 8.20 | ||||
| 36 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 37 | Y10440001 | Shelf, Wire Frz. (18) |
|
- | |||||
| NI | 10480508 | Assy, Crisper Frame |
|
- |
