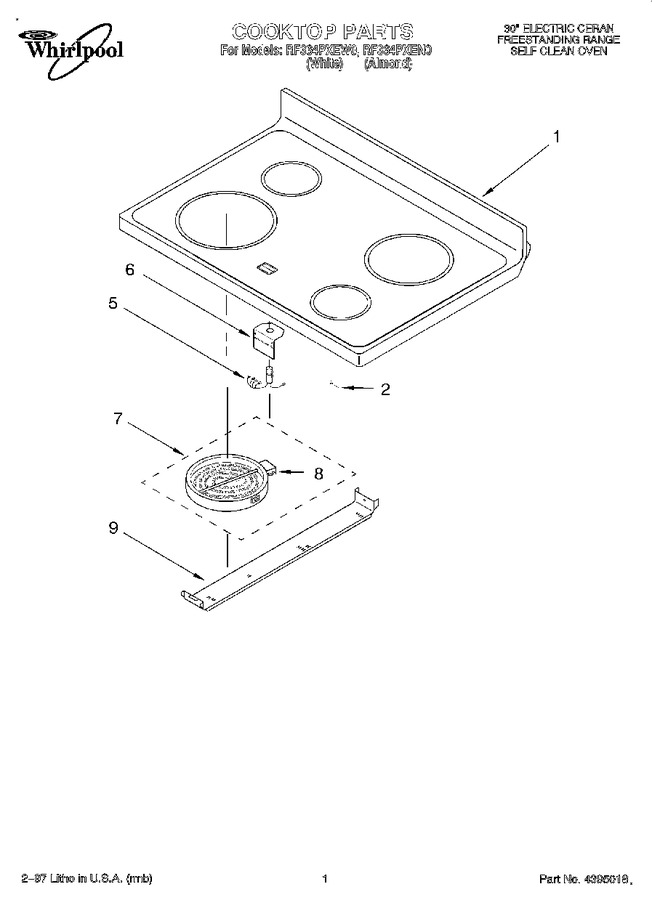

01 - Cooktop
02 - Control Panel
03 - Chassis
04 - Drawer And Broiler
05 - Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3196420 | Cooktop (white) |
|
- | |||||
| 1 | 3196421 | Cooktop (almond) |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 2 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 5 | 3196085 | Light, Indicator (hot Surface) |
|
- | |||||
| 6 | 3196103 | Bracket, Ind Light |
|
- | |||||
| 6 | WP3196175 | Screw (2) (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 7 | 3196429 | Element, Surface (includes No. 8) (2000 W - Rr) |
|
- | |||||
| 7 | 3189894 | Element, Surface (includes No. 8) (1400 W - Rf) |
|
- | |||||
| 8 | 3190254 | Limiter, Temp. (2000 W - Rr) |
|
- | |||||
| 8 | 3190253 | Limiter, Temp. (1400 W - Rf) |
|
- | |||||
| 9 | 3196454 | Bracket, Element |
|
- | |||||
| 9 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 |
