SELECT A DIAGRAM

Diagram for 01 - Cabinet Back
01 - Cabinet Back

Diagram for 02 - Door Assemblies
02 - Door Assemblies

Diagram for 03 - Door, Hinges And Accessories
03 - Door, Hinges And Accessories

Diagram for 04 - Evap And Fan Motor Assemblies
04 - Evap And Fan Motor Assemblies

Diagram for 05 - Ice Maker Assy And Parts
05 - Ice Maker Assy And Parts

Diagram for 06 - Interior Cabinet And Drain Block Assy
06 - Interior Cabinet And Drain Block Assy

Diagram for 07 - Ladders, Lower Cabinet And Rollers
07 - Ladders, Lower Cabinet And Rollers

Diagram for 08 - Machine Compartment
08 - Machine Compartment

Diagram for 09 - Shelving Assemblies
09 - Shelving Assemblies


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
22 10436404 Lid, Utility Special Order $ 60.85

32 10310901 Tray, Butter Appelez-nous -
42 WP841180A Ice Tray   (Replaces: D7725402) In-Stock Immediately $ 47.84

72 10423128 Bin-utility Appelez-nous -
82 10436505 Tray, Egg Appelez-nous -
171 WP67001130 Plug   (Replaces: M0310709) In-Stock Immediately $ 5.98

191 10448501 Shim, Top Hinge Appelez-nous -
201 10448502 Shim, Top Hinge Appelez-nous -
211 10448503 Shim, Top Hinge Appelez-nous -
221 10562201 Shim, Center Hinge Appelez-nous -
231 10562202 Shim, Center Hinge Appelez-nous -
241 10562203 Shim, Center Hinge Appelez-nous -
261 WPM0274057 Shim, Non Metal (wht)   (Replaces: M0274057) In-Stock Immediately $ 8.40

271 10351002 Pin, Hinge (ctr) Appelez-nous -
291 M0274058 Shim, Non Metal (wht) Special Order $ 5.83

301 5303918507 Assy, Top Hinge   (Replaces: 12077303) Special Order $ 956.29

311 12028501 Closure, Door (wht) Special Order $ 6.67

321 10433412 Hinge-ctr Chrome Appelez-nous -
331 67007018 Pin, Hinge (btm)   (Replaces: 10200801) In-Stock Immediately $ 8.62

381 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 10.58

441 10444705 Kit Hinge Cover (white) Appelez-nous -
511 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

521 D7874403 Cover-fl Tb/plug Appelez-nous -
1201 10253510 Handle Assy Ref W Appelez-nous -
1211 10201802 Cover-handle Screw W Appelez-nous -
1221 10184301 Plug-nameplate W Appelez-nous -
1231 10184401 Nameplate, Handle Appelez-nous -
1241 10184501 Pad Nameplate Appelez-nous -
1251 10253509 Handle Assy Fz W Appelez-nous -
1261 10201801 Cover-handle Screw W Appelez-nous -
1261 10201811 Cover- Hndl Screw Almond Appelez-nous -
1271 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

1281 WPW10348409 Screw   (Replaces: M0221718) In-Stock Immediately $ 8.20

1891 10419106 Retainer, Ref Door Appelez-nous -
1911 10502906 Bucket, Ref Door Appelez-nous -
1921 10423416 Door,dairy Appelez-nous -
1981 10419706 Shelf, Ref Door Appelez-nous -
2021 M0310330 Plug, Button White Appelez-nous -
5001 10419206 Retainer, Ref Door Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

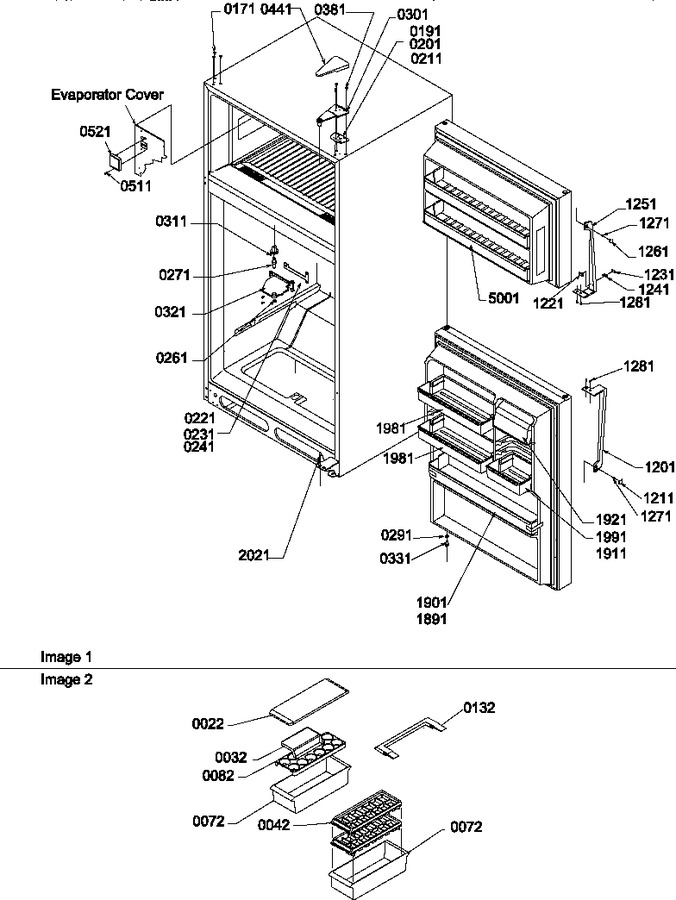

Diagram for TG18V1W (BOM: P1194604W W)
