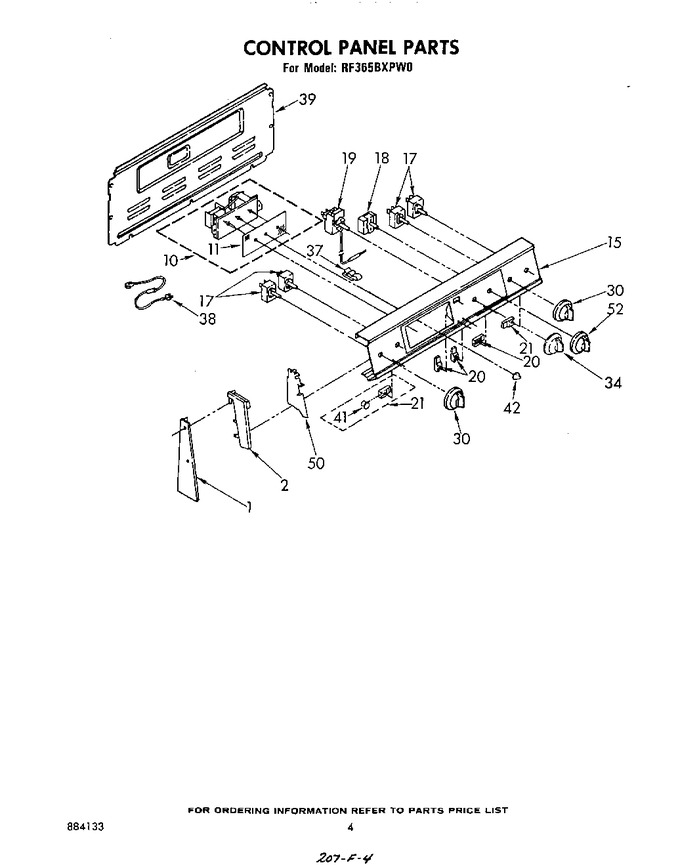

03 - Control Panel


04 - Oven


05 - Door And Drawer


06 - Oven , Literature And Optional


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313189		End Trim R.h.		Appelez-nous	-
1	313188		End Trim L.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 8.25
2	313231		End Cap L.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
10	313511		Timer, Auto		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
11	313513		Glass, Timer		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
15	313241		Panel, Control		Appelez-nous	-
15	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
17	WP3149400		Switch, Infinite (use W/8`` Surface Unit (2))   (Replaces: 311859)			Immediately	$ 90.51
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.89
17	WP3149404		Switch, Infinite (use W/6`` Surface Unit (2))   (Replaces: 311857)			Immediately	$ 61.45
18	312288		Switch, Selector (5 Position)		Appelez-nous	-
18	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.89
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
19	313068		Thermostat, Oven Pyro		Appelez-nous	-
20	313111		Light, Indicator (3) (oven, Lock, Clean) (includes Illus. 41)		Appelez-nous	-
21	313102		Light, Indicator (surface Unit) (2) (includes Illus. 41)				$ 66.48
30	330171		Knob, Control (4)		Appelez-nous	-
34	330169		Knob, Control (2)		Appelez-nous	-
34	310410		Screw (2)		Appelez-nous	-
37	313570		Tube Clip		Appelez-nous	-
38	328923		Resistor & Terminal Assembly		Appelez-nous	-
39	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
39	313195		Rear Cover Control Panel		Appelez-nous	-
41	313101		Lens, Amber (5)		Appelez-nous	-
42	330206		Knob, Timer (3)		Appelez-nous	-
42	313311		Spring, Knob		Appelez-nous	-
50	313608		Shield, Glass (2)		Appelez-nous	-
50	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
52	330172		Knob, Control		Appelez-nous	-
52	WP688805		Spring   (Replaces: 688805)			Immediately	$ 8.20
