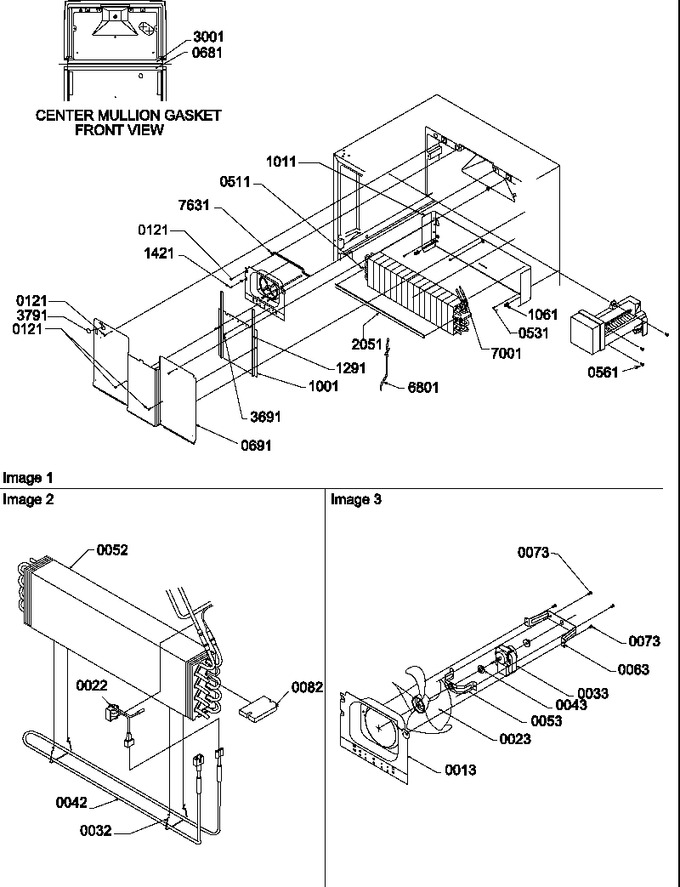

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 13 | 10422304 | Shroud, Evap. Fan |
|
- | |||||
| 22 | 10442408 | Thermostat |
|
- | |||||
| 23 | W10116797 | Assy, Fan-evap (Replaces: 10855401) |
|
Immediately | $ 8.56 | ||||
| 32 | W11673433 | Clip, Evap Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 33 | WP10449501 | Motor-evap Fan (Replaces: 10449501) |
|
$ 240.54 | |||||
| 42 | 10991106 | Heater Evap. |
|
- | |||||
| 43 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 46.17 | ||||
| 52 | R0170068 | Assy,low Side |
|
- | |||||
| 53 | 10492801 | Brkt, Up Evap. Fan |
|
$ 5.27 | |||||
| 63 | 10492701 | Brkt, Lwr. Evap. Fan |
|
$ 5.27 | |||||
| 73 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 82 | 10991002 | Block, R Evap. |
|
- | |||||
| 121 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 511 | 10428301 | Block, Evap. L. |
|
- | |||||
| 531 | 67006425 | Screw, Sm (Replaces: M0238642) |
|
Immediately | $ 7.30 | ||||
| 561 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 681 | 10685508 | Gasket, Sealing |
|
- | |||||
| 691 | 10432406 | Cover, Evaporator |
|
- | |||||
| 1001 | 10440714 | Cover, Evaporator |
|
- | |||||
| 1011 | 10427712 | Shield, Evap. |
|
- | |||||
| 1061 | 10442301 | Clip, Evaporator |
|
- | |||||
| 1291 | A3030356 | Gasket |
|
- | |||||
| 1421 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 2051 | A3189348 | Gasket, Foam |
|
- | |||||
| 3001 | B5759626 | Gasket, Sealing |
|
- | |||||
| 3691 | WP489399 | Screw, Se (Replaces: M0232929) |
|
$ 7.30 | |||||
| 3791 | A3124301 | Plug |
|
- | |||||
| 6801 | 10586601 | Clip, Ht Transfer |
|
- | |||||
| 7001 | M0321210 | Tie, Elec |
|
- | |||||
| 7631 | A3030354 | Gasket |
|
- |
