SELECT A DIAGRAM

02 - Cooktop


03 - Control Panel


04 - Oven


05 - Door And Drawer


06 - Oven (continued)


07 - Wiring Harness , Literature And Optional

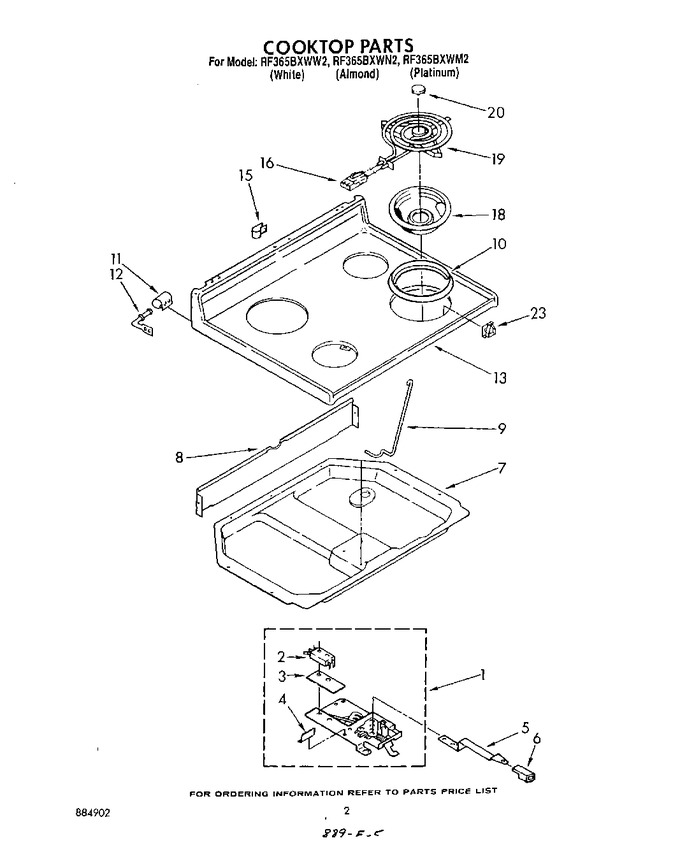

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3171153		Latch & Switch Assembly		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
2	98106		Screw (2)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Latch Terminal		Appelez-nous	-
4	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
5	308422		Screw, 10-24 X 1/2		Appelez-nous	-
5	3147065		Handle, Latch		Appelez-nous	-
6	3148684		Knob, Latch		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.82
7	3150186		Box, Burner		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
8	307973		Shield, Wiring		Appelez-nous	-
9	3148659		Rod, Cooktop		Appelez-nous	-
10	W10858781		Ring, Adapter (8`` (2) 10-16 X 1/2 (4))   (Replaces: 3150245)				$ 95.16
10	W10854470		Ring, Adapter (6`` (2))   (Replaces: 3150244)				$ 90.41
11	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 7.85
11	307965		Bracket (2)		Appelez-nous	-
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
13	3170981		Cooktop (white)		Appelez-nous	-
13	3170984		Cooktop (platinum)		Appelez-nous	-
13	3170982		Cooktop (almond)		Appelez-nous	-
13	WP681414		Cooktop (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.85
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 11.20
16	WP313808		Screw (4)   (Replaces: 313808)				$ 7.60
16	330031		Receptacle, Clip (4)   (Replaces: 312606)			Immediately	$ 16.09
18	3150198		Pan, Reflector (6`` (2))		Appelez-nous	-
18	W10291024		Pan, Reflector (8`` (2))   (Replaces: 3150199)			Immediately	$ 55.44
19	WP660532		Unit, Surface 6`` L.f. & R.r.   (Replaces: 660532)			Immediately	$ 41.00
19	WP660533		Unit, Surface 8`` R.f. & L.r. (includes Illus. 20)   (Replaces: 660533)			Immediately	$ 43.86
20	309195		Medallion (4)		Appelez-nous	-
23	00487887		Screw (4)   (Replaces: 487887)				$ 244.80
23	814103		Clip, Hold Down (4)   (Replaces: 3148790)				$ 10.02
23	814102		Nut (4)				$ 5.27

    View Diagram in Separate Window       Print Part List
