Diagram # Part Number Description Series Availability Ships Price Add to Cart
103 10163201 Elbow Drain Tube Appelez-nous -
104 A3132301 Gasket Appelez-nous -
119 10442205 Cover, Ht Exch Appelez-nous -
130 M0227217 Screw, Sm Appelez-nous -
144 B8372901 Clamp Appelez-nous -
153 WPM0104106 Clip,cord   (Replaces: M0104101) Special Order $ 8.17

168 10544301 Plug, Im Tunnel Appelez-nous -
195 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

352 10663002 Insul., L. Foot Appelez-nous -
400 10908101 Tube, Drain Appelez-nous -
590 12075502 Harness, Cabinet Appelez-nous -
600 10699301 Grommet Appelez-nous -
610 10428001 Plug, Ht Exch V Appelez-nous -
610 12039805 Back, Mach Comp Appelez-nous -
620 12041819 Assy, M.c. Back Appelez-nous -
620 10916501 Cord, Power Appelez-nous -
630 10442205 Cover, Ht Exch Appelez-nous -
650 M0219704 Screw Appelez-nous -
660 M0227217 Screw, Sm Appelez-nous -
701 12047201 Plate-water Valve Appelez-nous -
710 B5720303 Clip Appelez-nous -
850 10547101 Clip, Tube Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

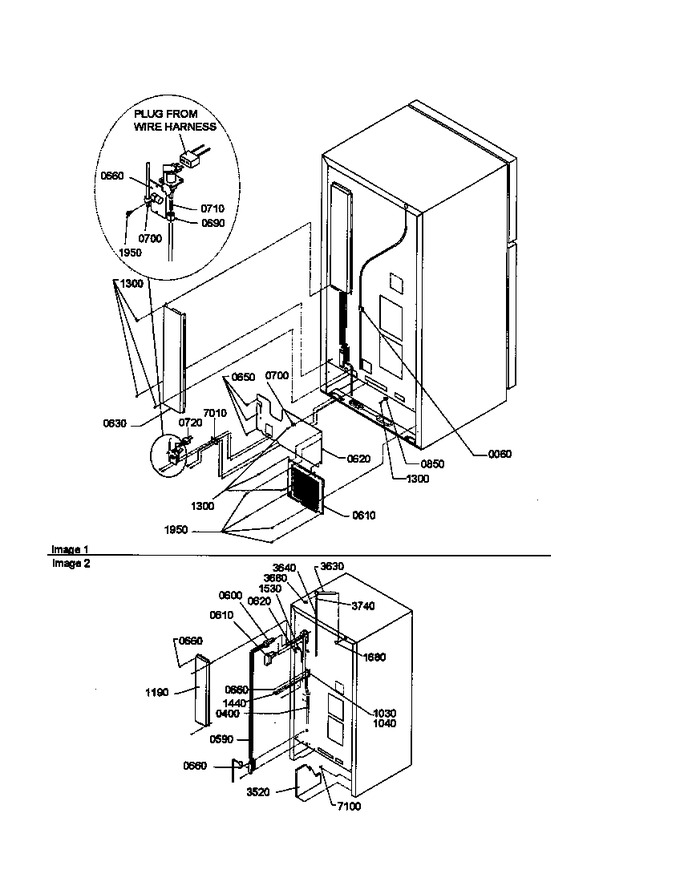

Diagram for TH18TE (BOM: P1301701W E)
