Diagram # Part Number Description Series Availability Ships Price Add to Cart
20 10436404 Lid, Utility Special Order $ 60.85

30 10310901 Tray, Butter Appelez-nous -
40 WP841180A Ice Tray   (Replaces: D7725402) In-Stock Immediately $ 47.84

70 10423128 Bin-utility Appelez-nous -
80 10436505 Tray, Egg Appelez-nous -
120 10253510 Handle Assy Ref W Appelez-nous -
121 10201802 Cover-handle Screw W Appelez-nous -
122 10184301 Plug-nameplate W Appelez-nous -
123 10184401 Nameplate, Handle Appelez-nous -
124 10184501 Pad Nameplate Appelez-nous -
125 10253509 Handle Assy Fz W Appelez-nous -
126 10201801 Cover-handle Screw W Appelez-nous -
127 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

128 WPW10348409 Screw   (Replaces: M0221718) In-Stock Immediately $ 8.20

130 12106901 Retainer, Tall Pkg Appelez-nous -
170 WP67001130 Plug   (Replaces: M0310709) In-Stock Immediately $ 8.21

189 10419106 Retainer, Ref Door Appelez-nous -
190 10448501 Shim, Top Hinge Appelez-nous -
191 10502906 Bucket, Ref Door Appelez-nous -
192 10423416 Door,dairy Appelez-nous -
198 10419706 Shelf, Ref Door Appelez-nous -
200 10448502 Shim, Top Hinge Appelez-nous -
202 M0310330 Plug, Button White Appelez-nous -
210 10448503 Shim, Top Hinge Appelez-nous -
220 10562201 Shim, Center Hinge Appelez-nous -
230 10562202 Shim, Center Hinge Appelez-nous -
240 10562203 Shim, Center Hinge Appelez-nous -
260 WPM0274057 Shim, Non Metal (wht)   (Replaces: M0274057) In-Stock Immediately $ 8.40

270 10351002 Pin, Hinge (ctr) Appelez-nous -
300 10185104 Assy, Top Hinge Appelez-nous -
310 12028501 Closure, Door (wht) Special Order $ 6.67

320 10433412 Hinge-ctr Chrome Appelez-nous -
330 67007018 Pin, Hinge (btm)   (Replaces: 10200801) In-Stock Immediately $ 8.62

380 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

440 10444705 Kit Hinge Cover (white) Appelez-nous -
500 10419206 Retainer, Ref Door Appelez-nous -
510 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

520 D7874403 Cover-fl Tb/plug Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

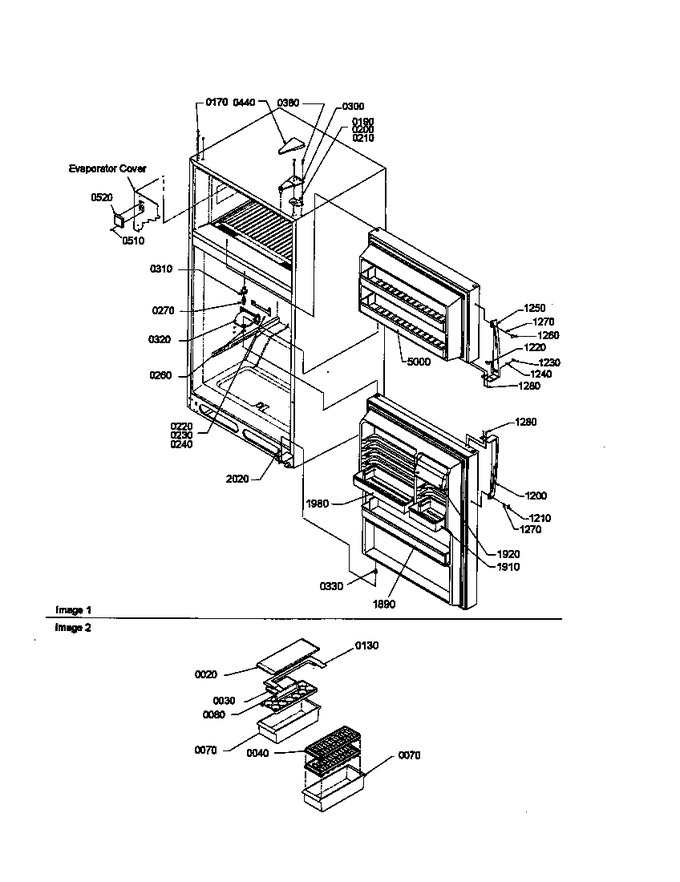

Diagram for TH18TW (BOM: P1301701W W)
