SELECT A DIAGRAM

02 - Cook Top


03 - Control Panel

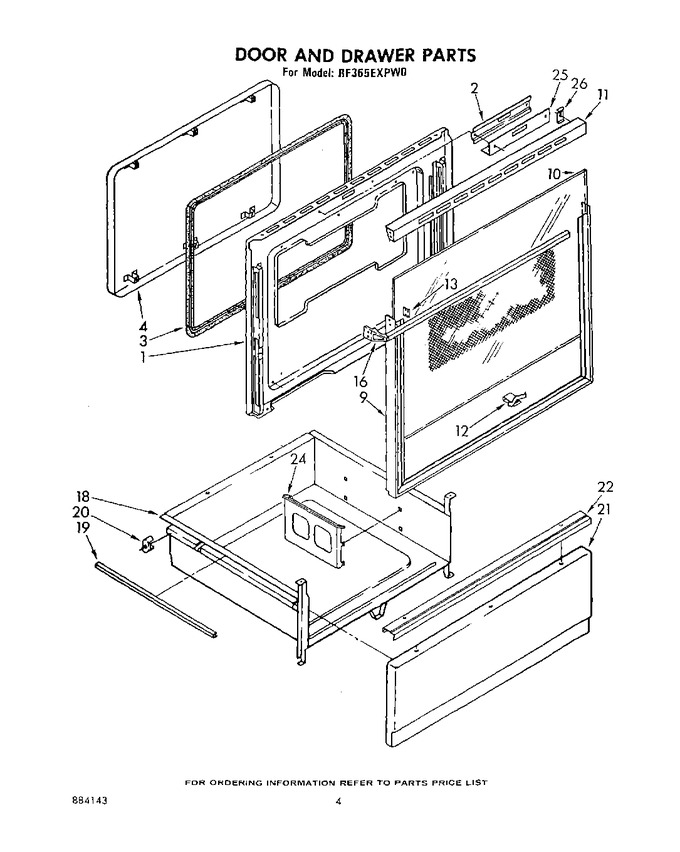

04 - Door And Drawer


05 - Oven , Literature And Optional


06 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329694		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (9)		Appelez-nous	-
1	311056		Screw (2)		Appelez-nous	-
2	311054		Screw (2)		Appelez-nous	-
2	308033		Channel, Latch		Appelez-nous	-
3	311904		Seal, Fiberglass		Appelez-nous	-
4	328546		Panel, Inner		Appelez-nous	-
9	310427		Frame, Door		Appelez-nous	-
10	00573829		Glass, Outer   (Replaces: 310655)			Immediately	$ 30.53
11	310784		Top, Door Frame		Appelez-nous	-
11	WP90296		Clip (2)   (Replaces: 90296)				$ 7.85
11	307748		Screw, 10a X 1/2 (2) (black)		Appelez-nous	-
12	310706		Clip, Glass (10)		Appelez-nous	-
13	311506		Clip (2)		Appelez-nous	-
16	WP355515		Screw, 8 X 7/8 (4)   (Replaces: 355515)				$ 7.67
16	313472		Handle, Oven Door		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
20	307980		Glide, Rear (2)		Appelez-nous	-
21	313172		Panel, Drawer (platinum)		Appelez-nous	-
21	313171		Panel, Drawer (toast)		Appelez-nous	-
21	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 10.58
21	307935		Panel Drawer (white)		Appelez-nous	-
21	307939		Panel, Drawer (almond)		Appelez-nous	-
22	313337		Handle, Drawer		Appelez-nous	-
22	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 7.57
24	357645		Rack, Literature		Appelez-nous	-
25	310056		Shield		Appelez-nous	-
26	310705		Hold-down (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
