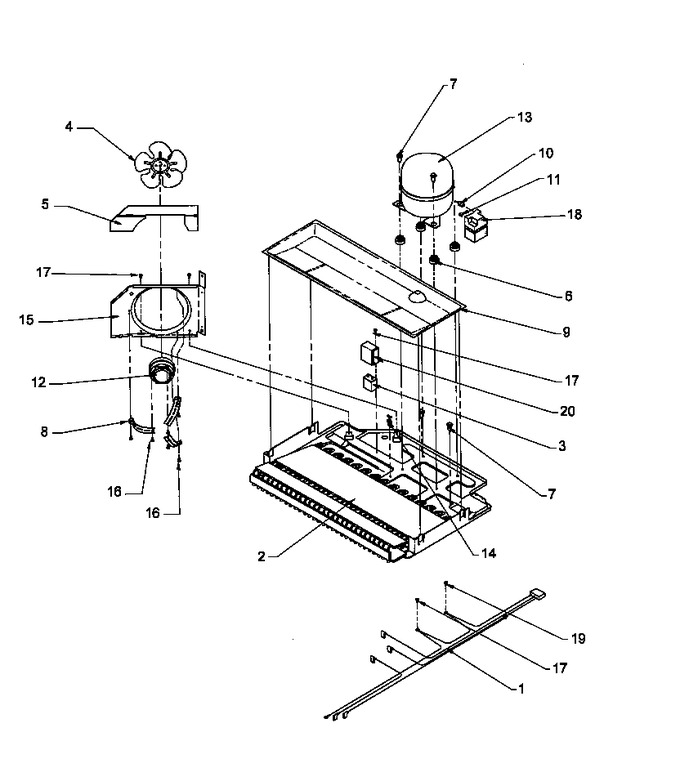

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10705802 | Harness, Mach Comp |
|
- | |||||
| 2 | 10481210 | Assy, Cond Pan |
|
- | |||||
| 3 | WP65889-4 | Capacitor (Replaces: C8931604) |
|
Immediately | $ 61.14 | ||||
| 4 | B5742602 | Blade, Fan |
|
- | |||||
| 5 | 10442702 | Gasket, Cond. Fan |
|
- | |||||
| 6 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 7.55 | |||||
| 7 | M0221523 | Screw, Shldr |
|
- | |||||
| 8 | 10582501 | Bracket, Cond. Motor |
|
- | |||||
| 9 | 10427402 | Pan, Drain |
|
- | |||||
| 10 | 10377015 | Overload |
|
- | |||||
| 11 | WP10097202 | Ptc Relay (Replaces: 10097202) |
|
$ 124.93 | |||||
| 12 | 833697 | Motor, Fan (Replaces: 10884501) |
|
Immediately | $ 88.15 | ||||
| 13 | 10927322 | Compressor |
|
- | |||||
| 14 | B5667304 | Wire Clip |
|
- | |||||
| 15 | 10426904 | Shroud, Cond. Fan (e Coat) |
|
- | |||||
| 16 | M0223803 | Screw |
|
- | |||||
| 17 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 18 | 10757301 | Cover, Terminal |
|
- | |||||
| 19 | M0253916 | Screw |
|
- | |||||
| 20 | 10266402 | Shield, Capacitor |
|
- |
