SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Bottom


03 - Cabinet Shelving


04 - Cabinet Shelving


05 - Compressor Compartment


06 - Control Panel Assy


07 - Divider Block


08 - Evap Area


09 - Fz Door Assy

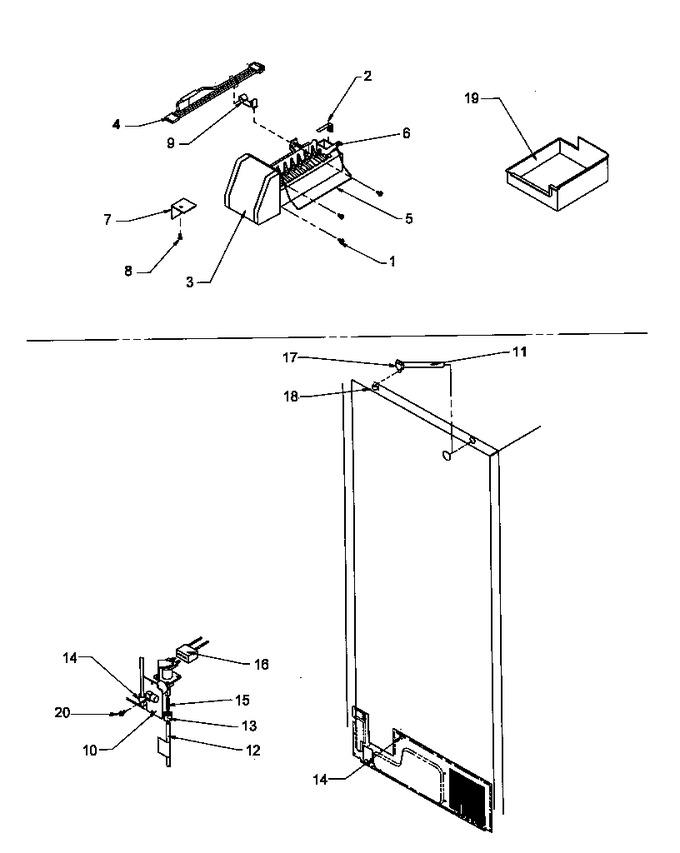

10 - Ice Maker Assy


11 - Ref Door Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
2	B5720301		Clip		Appelez-nous	-
3	WPW10289690		Cover, Ice Maker   (Replaces: 10519801)			Immediately	$ 8.82
4	WPD7813010		Harness, Ice Maker Mod   (Replaces: D7813004)			Immediately	$ 73.97
5	WP67004028		Arm, I.m. Shut-off   (Replaces: 10884401)			Immediately	$ 95.92
6	D7824706Q		Ice Maker   (Replaces: D7824702)			Immediately	$ 167.35
7	B8391802		Bracket, I/m		Appelez-nous	-
8	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
9	10526701		Clamp, Wire		Appelez-nous	-
10	W10833899		Kit, Water Valve   (Replaces: 10524606)			Immediately	$ 253.55
11	W11176463		Elbow, Fill Tube   (Replaces: 10463201)			Immediately	$ 119.86
12	WPB5705307		Tubing Plastic   (Replaces: B5705308)				$ 13.05
13	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
14	M0108001		Clamp, Tube		Appelez-nous	-
15	A1055101		Spring, Antikink		Appelez-nous	-
16	10525901		Harness, Water Valve				$ 8.02
17	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
18	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
19	WP67001255		Use 10476207   (Replaces: 10476201)				$ 213.23
20	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
NI	10244904		Coupling				$ 25.37

    View Diagram in Separate Window       Print Part List
