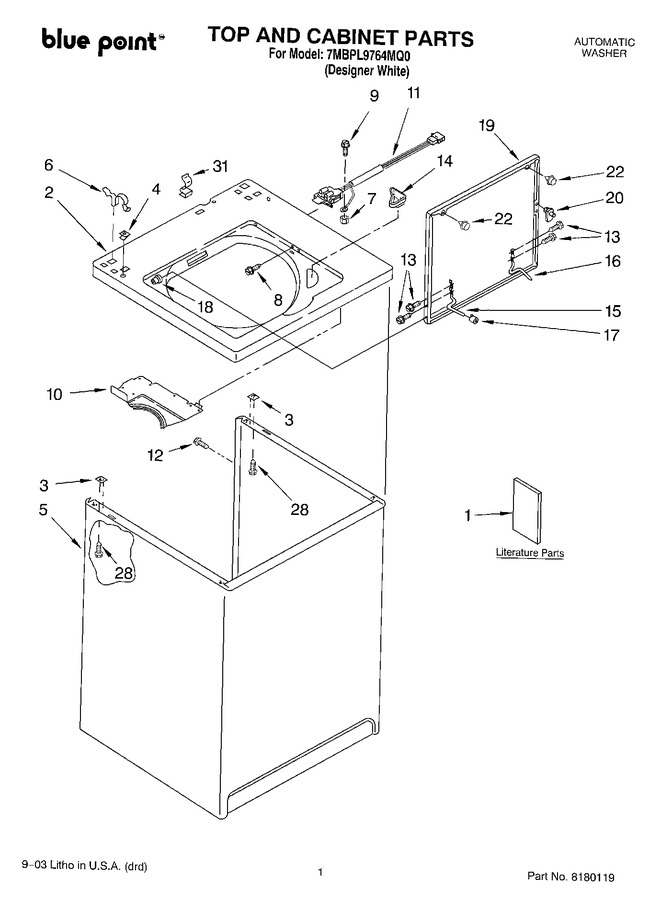

01 - Top And Cabinet Parts

Diagram for 02 - Controls And Rear Panel Parts
02 - Controls And Rear Panel Parts

Diagram for 03 - Agitator, Basket And Tub Parts
03 - Agitator, Basket And Tub Parts

Diagram for 04 - Brake, Clutch, Gearcase, Motor And Pump Parts
04 - Brake, Clutch, Gearcase, Motor And Pump Parts

Diagram for 05 - Machine Base Parts
05 - Machine Base Parts

Diagram for 06 - Wiring Harness Parts
06 - Wiring Harness Parts

Diagram for 07 - Brake And Drive Tube Parts
07 - Brake And Drive Tube Parts

Diagram for 08 - Gearcase Parts
08 - Gearcase Parts

Diagram for 09 - Water System Parts
09 - Water System Parts

Diagram for 10 - Miscellaneous Parts - Optional Parts (not Included)
10 - Miscellaneous Parts - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT8539757 Literature Parts (installation Instructions) Appelez-nous -
1 LIT8542379 Literature Parts (wiring Diagram) Appelez-nous -
1 LIT8539775 Literature Parts (energy Guide) Appelez-nous -
1 LIT8539739 Literature Parts (use & Care Guide) Appelez-nous -
2 8271408 Top Appelez-nous -
3 WP62750 Spacer, Cabinet To Top (4)   (Replaces: 62750) In-Stock Immediately $ 8.07

4 WP357213 Nut,push-in   (Replaces: 357213) Special Order $ 7.76

5 63128 Cabinet Appelez-nous -
6 WP62780 Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780) In-Stock Immediately $ 8.19

7 W10080180 Nut, Hex   (Replaces: 3400901) Special Order $ 14.15

8 WP3356311 Screw & Washer, Lid Switch (2)   (Replaces: 3356311) Special Order $ 8.23

9 WP3351614 Screw, 10-24 X 3/8   (Replaces: 3351614) In-Stock Immediately $ 7.30

10 3950995 Shield, Lid Switch Appelez-nous -
11 3950299 Switch, Lid Appelez-nous -
12 WP308685 Screw,10-16 X 1/2   (Replaces: 3357011) In-Stock Immediately $ 7.87

13 WPW10119828 Screw, Lid Hinge Mounting (4)   (Replaces: 3351355) In-Stock Immediately $ 7.55

14 WP3362952 Dispenser, Bleach   (Replaces: 3362952) In-Stock Immediately $ 12.09

15 WP54584 Hinge, Lid (l.h.)   (Replaces: 54584) Special Order $ 35.50

16 WP91770 Hinge, Lid (r.h.)   (Replaces: 91770) Special Order $ 28.82

17 19119 Bumper, Lid Hinge Special Order $ 5.75

18 WP21258 Bearing, Lid Hinge (2)   (Replaces: 21258) Special Order $ 8.01

19 285946 Lid   (Replaces: 8541720) Appelez-nous -
20 WP358684 Strike, Lid Switch   (Replaces: 357913) In-Stock Immediately $ 8.05

22 WP9724509 Bumper, Lid (2)   (Replaces: 9724509) In-Stock Immediately $ 8.33

28 WP3390631 Screw, 10-16 X 3/8 (4)   (Replaces: 3390631) Special Order $ 8.25

31 WP90016 Clip, Harness   (Replaces: 90016) Special Order $ 11.89
