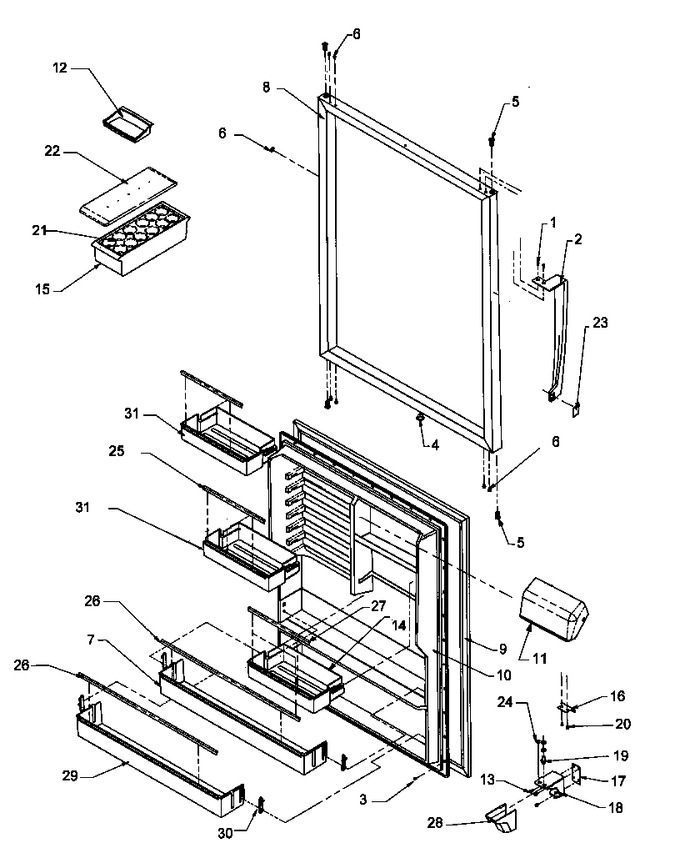

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: M0221718)			Immediately	$ 8.20
2	10253523		Assy, Ref Hndl L		Appelez-nous	-
3	M0219730		Screw				$ 7.65
4	M0310338		Plug Button Almond		Appelez-nous	-
5	10961001		Bushing, Door (wht)		Appelez-nous	-
6	M0310730		Plug Button (almond)		Appelez-nous	-
7	10183113		Retainer, Ref Door (no Decor)		Appelez-nous	-
8	10925405L		Assy Ref Dr Fm		Appelez-nous	-
9	WP12550111Q		Gasket,ref Dr(white)   (Replaces: 10456803)				$ 178.50
10	10440804		Liner, Ref Door		Appelez-nous	-
11	10423414		Door,dairy		Appelez-nous	-
12	10310901		Tray, Butter		Appelez-nous	-
13	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
14	10502907		Bucket, Ref Door		Appelez-nous	-
15	10423128		Bin-utility		Appelez-nous	-
16	10447102		Stop, Door		Appelez-nous	-
17	10447904		Shim Hinge		Appelez-nous	-
18	10433209		Hinge, Bottom Black		Appelez-nous	-
19	67007018		Pin, Hinge (btm)   (Replaces: 10200801)			Immediately	$ 8.62
20	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
21	10436505		Tray, Egg		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
23	10201811		Cover- Hndl Screw Almond		Appelez-nous	-
28	10462805		Cover, L Hinge Lw		Appelez-nous	-
29	10419006		Retainer, Door		Appelez-nous	-
30	10202001		Clip, Retainer		Appelez-nous	-
31	10416905		Shelf, Ref Door		Appelez-nous	-
