Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 10436603 Cover, Glass Shelf Rail Appelez-nous -
13 10433804 Rail, Crisper Back Appelez-nous -
22 10436604 Cover, Glass Shelf Rail Appelez-nous -
23 10467804 Band, Crisper Cont. Appelez-nous -
31 10451401 Extr Mk Rear Appelez-nous -
32 10562502 Ext, Gl Shelf Side Appelez-nous -
33 10797501 Slide, Crisper Appelez-nous -
41 10450321 Extr, Mk Front Appelez-nous -
42 10370010 Shelf, Glass Appelez-nous -
43 10432701 Rail, Side Crisper Appelez-nous -
51 10437304 Sleeve, Mk Appelez-nous -
52 10681402 Rail, Pntd Appelez-nous -
53 10432702 Rail, Side Crisper Appelez-nous -
61 10681403 Rail, Pnt Appelez-nous -
62 10436901 Extr, Gl Shelf Rear Appelez-nous -
63 10432803 Rail, Ctr. Crisper Appelez-nous -
71 10681402 Rail, Pntd Appelez-nous -
72 10436817 Ext-gl Shlf Front Appelez-nous -
73 10432804 Rail, Ctr. Crisper Appelez-nous -
81 10445701 Scoop, Air V Appelez-nous -
82 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

83 10687801 Rail, R. Crisper Frt Appelez-nous -
91 10588201 Slide, Mtkp Cont. Appelez-nous -
93 10687802 Rail, L. Crisper Frt Appelez-nous -
101 10454004 Band, Mk Control Appelez-nous -
103 10435604 Rail, Crisper Back Appelez-nous -
111 10417301 Glide, Meat Kpr. Appelez-nous -
121 10432101 Glide, Meat Kpr. Appelez-nous -
131 10417013 Pan,meatkeeper Appelez-nous -
133 10370012 Shelf, Glass Special Order $ 86.24

141 10370010 Shelf, Glass Appelez-nous -
151 10562502 Ext, Gl Shelf Side Appelez-nous -
173 67006692 Screw, Hi Lo   (Replaces: M0237932) Special Order $ 10.79

183 10688055 Extr, R Crisp Front Appelez-nous -
191 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

193 10688054 Extr, L Crisp Front Appelez-nous -
203 10530201 Seal, Crisper Appelez-nous -
251 12027362 Spacer, Mk Slide   (Replaces: 12019301) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

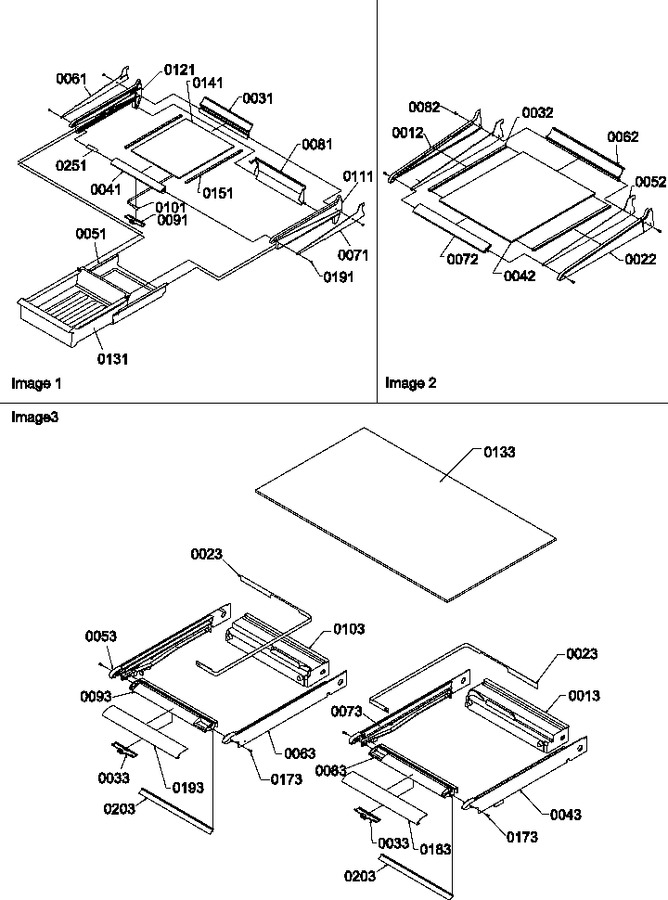

Diagram for TH21TE (BOM: P1301802W E)
