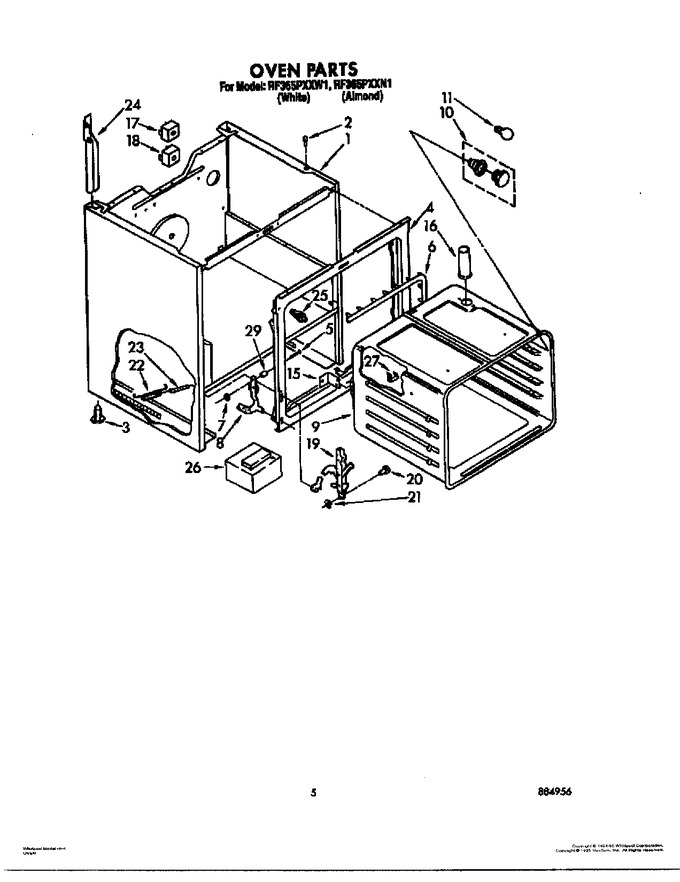

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Main Chassis (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 8.47
1	WP681414		Main Chassis (screw, 10-16 X 1/2 (2))   (Replaces: 343641)			Immediately	$ 8.47
1	330090		Main Chassis (almond)		Appelez-nous	-
1	330086		Main Chassis (white)		Appelez-nous	-
2	238614		Bumper, Cooktop (2)				$ 84.79
3	WPW10058460		Leg, Leveling (4)   (Replaces: 3150150)			Immediately	$ 8.24
4	3150537		Screw (top)		Appelez-nous	-
4	3172194		Frame, Front		Appelez-nous	-
4	WP681414		Screw (sides)   (Replaces: 343641)			Immediately	$ 8.47
5	307985		Pin, Hinge				$ 29.54
6	3148284		Seal, Door		Appelez-nous	-
7	308306		Pushnut		Appelez-nous	-
8	327891		Hinge (l.h.)		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
8	327890		Hinge (r.h.)		Appelez-nous	-
9	311056		Screw (2)		Appelez-nous	-
9	3150537		Screw		Appelez-nous	-
9	3172547		Oven (30`` Pyro)		Appelez-nous	-
10	W11594027		Socket, Lamp   (Replaces: 3150505)			Immediately	$ 87.01
11	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
15	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
15	311220		Bracket, Oven (mounting)		Appelez-nous	-
16	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
16	307961		Vent, Oven		Appelez-nous	-
17	314209		Switch, Broil		Appelez-nous	-
18	314210		Switch, Bake		Appelez-nous	-
19	329710		Channel, Arm (2)		Appelez-nous	-
20	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 15.81
21	307594		Ring, Retainer (2)		Appelez-nous	-
22	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 48.22
23	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 12.74
24	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
24	313197		Support, R.h. Channel		Appelez-nous	-
24	313196		Support, L.h. Channel		Appelez-nous	-
25	310345		Switch, Door				$ 94.86
26	312804		Block, Balance		Appelez-nous	-
26	340184		Screw				$ 14.11
27	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 87.08
29	8273888A		Anti-tip Kit   (Replaces: 814148)				$ 32.62
29	309111		Snubber, Door (2)		Appelez-nous	-
29	3169093		Insulation, Wrap		Appelez-nous	-
29	3169094		Insulation, Oven Back		Appelez-nous	-
