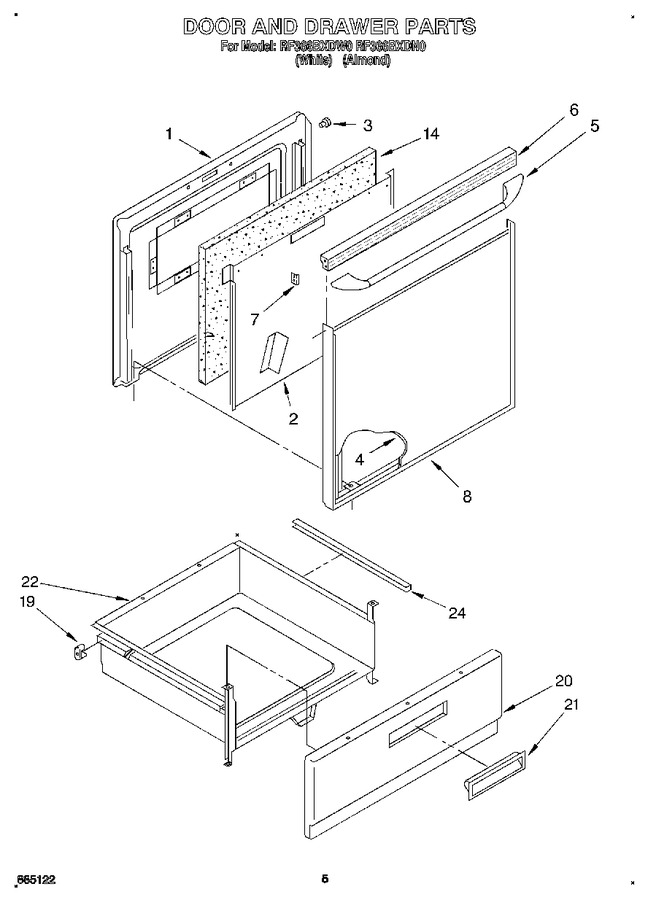

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172219		Liner, Door		Appelez-nous	-
2	3148160		Retainer, Insulation		Appelez-nous	-
2	3185647		Screw (4)		Appelez-nous	-
3	3148182		Bumper, Door (4)		Appelez-nous	-
4	3148186		Panel, Glass		Appelez-nous	-
5	3188695		Handle, Door		Appelez-nous	-
6	3149333		Screw (2)				$ 5.33
6	3188692		Door Top, Vent		Appelez-nous	-
7	WP999367		Screw (4)   (Replaces: 3169474)				$ 8.56
7	3148282		Clip, Handle (2)				$ 8.69
8	3149253		Screw (4)		Appelez-nous	-
8	3149333		Screw (3)				$ 5.33
8	3188997		Frame, Door		Appelez-nous	-
14	3147951		Insulation		Appelez-nous	-
19	307980		Glide, Rear		Appelez-nous	-
19	WP308685		Screw (2)   (Replaces: 3393008)			Immediately	$ 7.87
20	WP488627		Panel, Drawer (screw (3))   (Replaces: 313349)				$ 8.11
20	3169431		Panel, Drawer (almond)		Appelez-nous	-
20	3169430		Panel, Drawer (white)		Appelez-nous	-
21	3150613		Handle, Snap-in (almond)		Appelez-nous	-
21	3150612		Handle, Snap-in (white)		Appelez-nous	-
22	327887		Drawer, Utility		Appelez-nous	-
24	309329		Protector, Drawer (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
