SELECT A DIAGRAM

02 - Cooktop And Control, Lit/optional


03 - Oven, Optional


04 - Door And Drawer


05 - Wiring Harness


06 - Oven (continued)

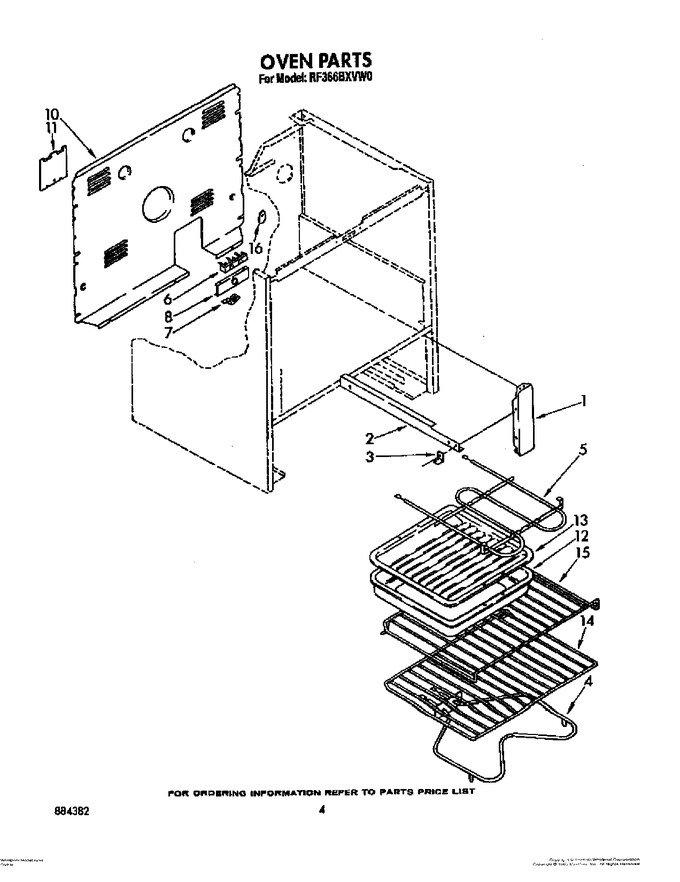

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307981		Bracket, Mounting (2)		Appelez-nous	-
2	3149256		Rail L.h. (includes Illus. 3)		Appelez-nous	-
2	3149255		Rail R.h.		Appelez-nous	-
2	WP681414		Screw, 10a X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
3	3149257		Glide, Front (2)		Appelez-nous	-
4	312318		Screw, 10-32 X 1/2 (2)		Appelez-nous	-
4	WP308180		Unit, Bake   (Replaces: 661170)				$ 107.69
5	312318		Screw, 10-32 X 1/2 (2)		Appelez-nous	-
5	WP660579		Unit, Broil   (Replaces: 660579)				$ 164.26
6	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 30.13
6	WP112432		Nut (6)   (Replaces: 112432)				$ 8.63
6	98884		Screw, 10-16 X 1 (2)		Appelez-nous	-
7	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
7	308498		Ground Strap		Appelez-nous	-
7	313660		Clip		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
8	307970		Bracket, Service		Appelez-nous	-
10	3148975		Cover, Rear		Appelez-nous	-
10	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 8.47
11	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
11	307972		Cover, Service		Appelez-nous	-
12	4396923		Pan, Broiler   (Replaces: 3147845)			Immediately	$ 60.71
13	4396923		Rack, Broiler   (Replaces: 3147563)			Immediately	$ 60.71
14	308173		Rack, Oven (straight)		Appelez-nous	-
15	308172		Rack, Oven (offset)		Appelez-nous	-
16	242985		Rotisserie Kit (rck 81)		Appelez-nous	-
16	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
16	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
16	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
16	CERAMABRYTE		Cleaner, Glass   (Replaces: 814009)			Immediately	$ 9.95
16	350942		Wire, Splicing 25 Ft. Black 12 Ga. 150~c (primer (white))   (Replaces: 206922)				$ 94.14
16	206925		Wire, Splicing 25 Ft. Black 12 Ga. 150~c (leveler (thinner) (2 Oz.) Paint, 1 Qt. Bulk)		Appelez-nous	-
16	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
16	978883		Wire, Splicing 25 Ft. Black 12 Ga. 150~c (almond (uncut))		Appelez-nous	-
16	261887		Wire, Splicing 25 Ft. Black 12 Ga. 150~c (coffee (uncut))		Appelez-nous	-
16	261891		Harvest Gold (uncut)		Appelez-nous	-
16	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
16	285368		Wire, Splicing 25 Ft. Black 12 Ga. 150~c (platinum (uncut))		Appelez-nous	-
16	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
16	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
16	261582		Grease		Appelez-nous	-
16	3147861		Dressing, Element		Appelez-nous	-
16	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
16	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
16	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
16	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
16	311982		Plate, Cover (2)		Appelez-nous	-
16	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
16	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
16	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
16	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
16	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
16	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
16	242829		Wire, Splicing 25 Ft. Black 12 Ga. 150~c (wire, Red 12 Ga. 150~c)		Appelez-nous	-
16	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
16	242831		Wire (14 Ga. 200 C Red)				$ 342.23
16	242826		Wire, Splicing 25 Ft. Black 12 Ga. 150~c (wire, White 14 Ga. 150~c)		Appelez-nous	-
16	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
16	242832		Wire, Splicing 25 Ft. Black 12 Ga. 150~c (wire, Yellow 14 Ga. 200~c Paint, 1/2 Oz. Touch-up)		Appelez-nous	-
16	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
16	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
16	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
16	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
16	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
16	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
16	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
16	261888		Wire, Splicing 25 Ft. Black 12 Ga. 150~c (new Avocado)		Appelez-nous	-
16	261886		Wire, Splicing 25 Ft. Black 12 Ga. 150~c (coffee)		Appelez-nous	-
16	261890		Wire, Splicing 25 Ft. Black 12 Ga. 150~c (harvest Gold)		Appelez-nous	-
16	285365		Wire, Splicing 25 Ft. Black 12 Ga. 150~c (toast)		Appelez-nous	-
16	285366		Wire, Splicing 25 Ft. Black 12 Ga. 150~c (platinum)		Appelez-nous	-
16	285006		Wire, Splicing 25 Ft. Black 12 Ga. 150~c (superior Black)				$ 59.89

    View Diagram in Separate Window       Print Part List
