SELECT A DIAGRAM

02 - Cooktop And Control, Lit/optional


03 - Oven, Optional

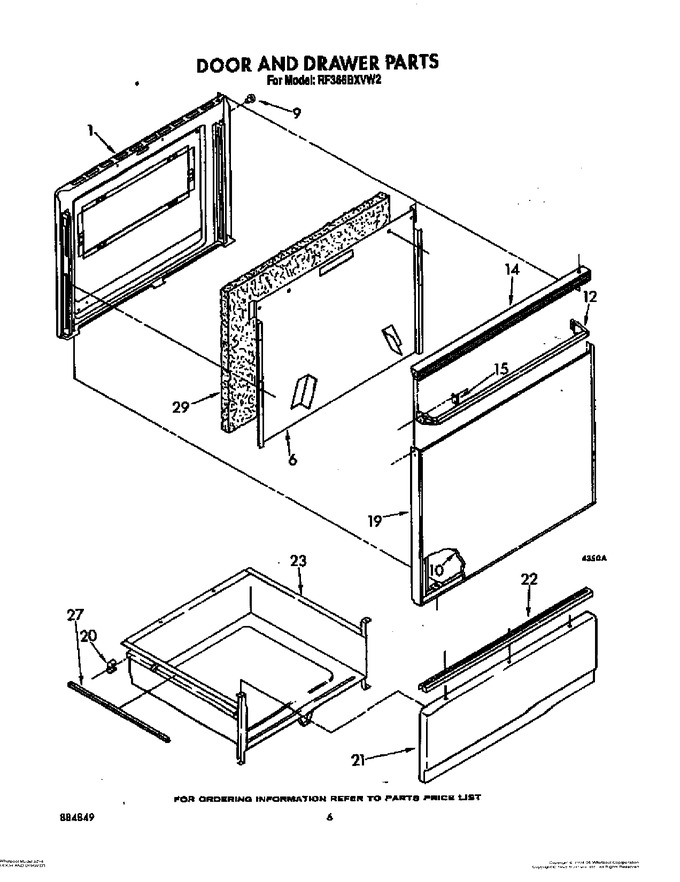

04 - Door And Drawer


05 - Wiring Harness


06 - Oven Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307748		Screw, 10a X 1/2 (9)		Appelez-nous	-
1	3149333		Screw (2)				$ 5.33
1	3172219		Liner, Door		Appelez-nous	-
6	3148160		Retainer, Insulation		Appelez-nous	-
6	3148443		Screw (4)		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3148186		Glass, Panel		Appelez-nous	-
12	WP355515		Screw (4)   (Replaces: 355515)				$ 7.67
12	3148228		Handle, Door		Appelez-nous	-
14	307748		Screw (3)		Appelez-nous	-
14	3148223		Trim, Panel		Appelez-nous	-
15	3148282		Clip, Mtg (2)				$ 8.69
19	3148235		Frame, Glass Panel		Appelez-nous	-
20	307980		Glide, Rear (2)		Appelez-nous	-
20	307748		Screw, 10x1/2 (2)		Appelez-nous	-
21	307935		Panel Drawer (white)		Appelez-nous	-
21	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 10.58
21	307939		Panel, Drawer (almond)		Appelez-nous	-
22	313337		Handle, Drawer		Appelez-nous	-
22	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 7.57
23	327887		Drawer, Utility		Appelez-nous	-
27	309329		Protector, Drawer		Appelez-nous	-
29	3147951		Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
