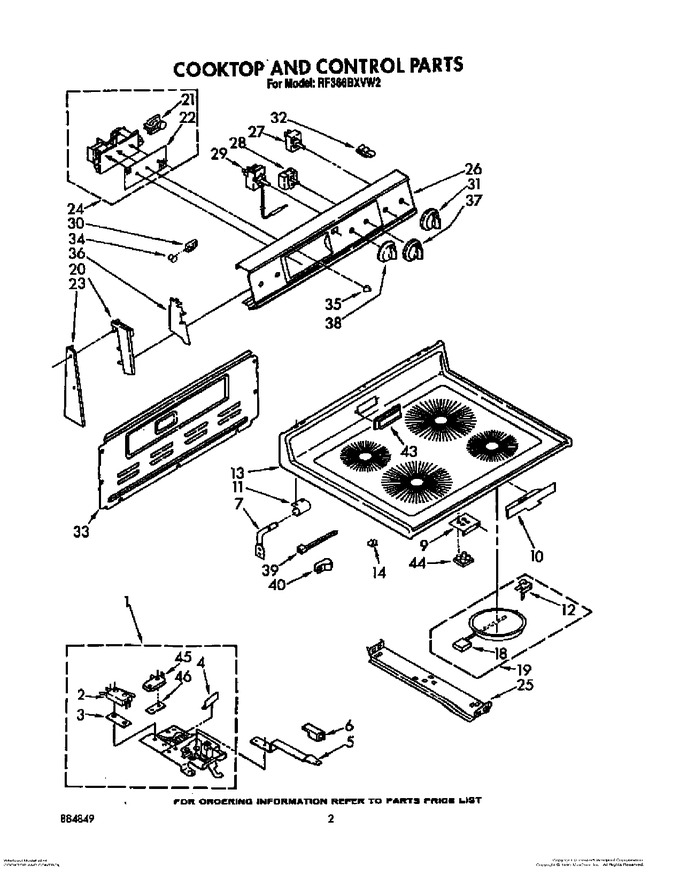

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3171148 | Latch Assembly |
|
- | |||||
| 1 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 2 | 98106 | Screw (2) |
|
- | |||||
| 2 | 308185 | Safety Switch |
|
- | |||||
| 3 | 309245 | Insulator, Switch |
|
- | |||||
| 4 | 309258 | Screw, 6 X 3/8b (2) |
|
- | |||||
| 4 | 313035 | Shield, Latch Terminal |
|
- | |||||
| 5 | 3147065 | Handle, Latch |
|
- | |||||
| 5 | 308422 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 6 | 155023 | Screw, |
|
Immediately | $ 7.91 | ||||
| 6 | 3148684 | Knob, Latch |
|
- | |||||
| 7 | 307966 | Pin, Top (2) |
|
- | |||||
| 7 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 9 | 98520 | Screw (2) |
|
- | |||||
| 9 | 3149032 | Bracket, Light |
|
- | |||||
| 10 | 3150346 | Shield, Probe |
|
- | |||||
| 11 | 307965 | Bracket, Top (2) |
|
- | |||||
| 11 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 12 | 3149191 | Spring, Element (8) |
|
$ 9.45 | |||||
| 12 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 7.50 | |||||
| 13 | 3176524 | Cooktop (almond) |
|
- | |||||
| 13 | 3176523 | Cooktop (white) |
|
- | |||||
| 13 | 98520 | Cooktop (screw (10)) |
|
- | |||||
| 14 | 311311 | Clip, Wire |
|
- | |||||
| 18 | 3149125 | Limiter, Temp. (180 Mm - Lr) |
|
- | |||||
| 18 | 3149127 | Limiter, Temp. (250 Mm (lf)) |
|
- | |||||
| 18 | 3149123 | Limiter, Temp. (230 Mm - Rr) |
|
- | |||||
| 18 | 3149126 | Limiter, Temp. (200 Mm - Rf) |
|
- | |||||
| 19 | 3148827 | Element, Surface (includes No. 18) (230 Mm - Rr) |
|
- | |||||
| 19 | 3148828 | Element, Surface (includes No. 18) (250 Mm - Lf) |
|
- | |||||
| 19 | 3148825 | Element, Surface (includes No. 18) (180 Mm - Lr) |
|
- | |||||
| 19 | 3148826 | Element, Surface (includes No. 18) (200 Mm - Rf) |
|
- | |||||
| 20 | 313230 | End Cap R.h. |
|
- | |||||
| 20 | 254225 | Screw (4) |
|
- | |||||
| 20 | 313231 | End Cap L.h. |
|
- | |||||
| 21 | WP965173 | Screw (2) (Replaces: 246132) |
|
Immediately | $ 10.72 | ||||
| 21 | 309822 | Motor, Timer |
|
- | |||||
| 22 | 313513 | Glass, Timer |
|
- | |||||
| 23 | 313189 | End Trim R.h. |
|
- | |||||
| 23 | 254225 | Screw (4) |
|
- | |||||
| 23 | 313188 | End Trim L.h. |
|
- | |||||
| 24 | WP965173 | Screw (2) (Replaces: 246132) |
|
Immediately | $ 10.72 | ||||
| 24 | 3149505 | Timer, Clock |
|
- | |||||
| 25 | 98520 | Screw (6) |
|
- | |||||
| 25 | 3148809 | Bracket, Mounting |
|
- | |||||
| 26 | 3148843 | Panel, Control |
|
- | |||||
| 26 | 312604 | Screw (4) |
|
- | |||||
| 27 | WP3148955 | Switch, Infinite (230 & 250 Mm) (Replaces: 3148955) |
|
$ 145.03 | |||||
| 27 | 3147832 | Switch, Infinite (nut (1)) |
|
- | |||||
| 27 | WP3148952 | Switch, Infinite (180 & 200 Mm) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 28 | WP965173 | Screw, No.8 X .31 (2) (Replaces: 3150344) |
|
Immediately | $ 10.72 | ||||
| 28 | 3148419 | Switch, Selector |
|
- | |||||
| 29 | WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 7.60 | |||||
| 29 | 3148933 | Thermostat, Oven |
|
$ 181.60 | |||||
| 30 | 313102 | Light, Indicator (top Elements (2)) |
|
$ 66.48 | |||||
| 30 | 314031 | Light, Indicator (oven On) |
|
$ 62.88 | |||||
| 30 | 3148719 | Light, Indicator (locked) |
|
- | |||||
| 31 | WP3149983 | Knob, (4) Infinite Control (Replaces: 3149983) |
|
$ 23.23 | |||||
| 32 | 313570 | Clip, Tube |
|
- | |||||
| 33 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 33 | 313195 | Cover, Control |
|
- | |||||
| 34 | 313101 | Lens, Light (5) |
|
- | |||||
| 35 | 330206 | Knob, Timer (3) |
|
- | |||||
| 35 | 313311 | Spring, Knob |
|
- | |||||
| 36 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 10.72 | ||||
| 36 | 313608 | Shield, Glass (2) |
|
- | |||||
| 37 | 3149986 | Knob, Selector |
|
$ 23.95 | |||||
| 38 | 3149988 | Knob, Thermostat |
|
- | |||||
| 39 | 3149157 | Tie, Wire (2) |
|
- | |||||
| 40 | WP308605 | Relief, Strain (Replaces: 308605) |
|
$ 11.20 | |||||
| 40 | 98520 | Screw |
|
- | |||||
| 43 | 3149190 | Cover, Vent (clip (2)) |
|
- | |||||
| 43 | 3149011 | Cover, Vent (white) |
|
- | |||||
| 43 | 3149012 | Cover, Vent (almond) |
|
- | |||||
| 44 | 3149029 | Light, Indicator |
|
- | |||||
| 45 | 3148669 | Switch, Lock |
|
- | |||||
| 46 | 3147864 | Insulator, Switch |
|
- | |||||
| LIT3147389 | Instructions, Installation |
|
- | ||||||
| LIT3148914 | Wiring Diagram |
|
- | ||||||
| LIT884849 | List, Repair Parts |
|
- | ||||||
| LIT3149507 | Book, Cooking Guide |
|
- | ||||||
| LIT3149921 | Guide, Use & Care |
|
- |
