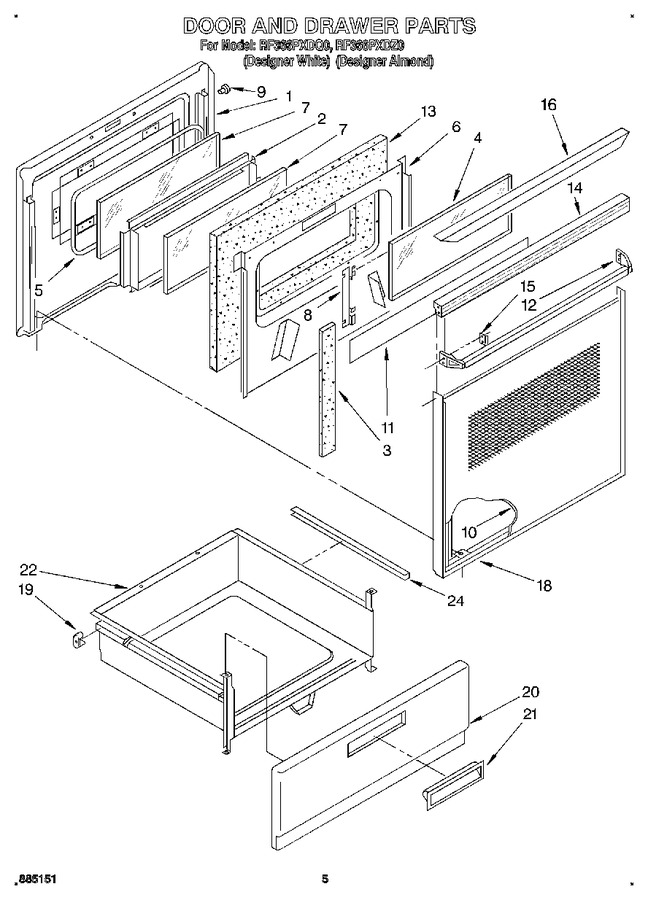

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3172218 | Liner, Oven Door |
|
- | |||||
| 2 | 3185647 | Screw (6) |
|
- | |||||
| 2 | 3148234 | Frame, Inner Glass |
|
- | |||||
| 3 | 3148441 | Seal, Foam |
|
- | |||||
| 4 | 3169202 | Glass, Clear |
|
- | |||||
| 5 | 3148183 | Seal, Window |
|
$ 7.41 | |||||
| 6 | 3148159 | Retainer, Insulation |
|
- | |||||
| 6 | 3148443 | Screw (4) |
|
- | |||||
| 7 | WP3169203 | Glass, Inside/outside (Replaces: 3169203) |
|
$ 158.33 | |||||
| 8 | 3148187 | Retainer, Glass |
|
- | |||||
| 8 | 3185647 | Screw (4) |
|
- | |||||
| 9 | 3148182 | Bumper (4) |
|
- | |||||
| 10 | 3188738 | Outer Glass, Door (designer White) |
|
- | |||||
| 10 | 3189263 | Outer Glass, Door (designer Almond) |
|
- | |||||
| 11 | 3169191 | Foil |
|
- | |||||
| 12 | 3188697 | Handle, Door (designer Almond) |
|
- | |||||
| 12 | 3188696 | Handle, Door (designer White) |
|
- | |||||
| 12 | WP999367 | Handle, Door (screw (2)) (Replaces: 3169474) |
|
$ 8.56 | |||||
| 13 | 3147951 | Insulation, Door |
|
- | |||||
| 14 | 3188694 | Top, Door Vent (designer Almond) |
|
- | |||||
| 14 | 3188693 | Top, Door Vent (designer White) |
|
- | |||||
| 15 | 3148282 | Clip (2) |
|
$ 8.69 | |||||
| 16 | 3188400 | Cap, Door Top (screw (2)) |
|
- | |||||
| 16 | 3189002 | Cap, Door Top (designer Almond) |
|
- | |||||
| 16 | 3188399 | Cap, Door Top (screw (2)) |
|
- | |||||
| 16 | 3189001 | Cap, Door Top (designer White Mdl.) |
|
- | |||||
| 18 | 3185918 | Frame, Outer Glass (screw (3)) |
|
- | |||||
| 18 | 3188404 | Frame, Outer Glass (screw (4)) |
|
- | |||||
| 18 | 3188999 | Frame, Outer Glass (designer Almond) |
|
- | |||||
| 18 | 3188403 | Frame, Outer Glass (screw (4)) |
|
- | |||||
| 18 | 3188998 | Frame, Outer Glass (designer White) |
|
- | |||||
| 19 | 307980 | Glide, Rear |
|
- | |||||
| 19 | WP488627 | Screw (2) (Replaces: 313349) |
|
$ 8.11 | |||||
| 20 | 3169430 | Panel, Drawer (white) |
|
- | |||||
| 20 | 3169431 | Panel, Drawer (almond) |
|
- | |||||
| 20 | WP488627 | Panel, Drawer (screw) (Replaces: 313349) |
|
$ 8.11 | |||||
| 21 | 3150612 | Handle, Snap-in (white) |
|
- | |||||
| 21 | 3150613 | Handle, Snap-in (almond) |
|
- | |||||
| 22 | 327887 | Drawer, Utility |
|
- | |||||
| 24 | 309329 | Protector, Drawer (2) |
|
- |
