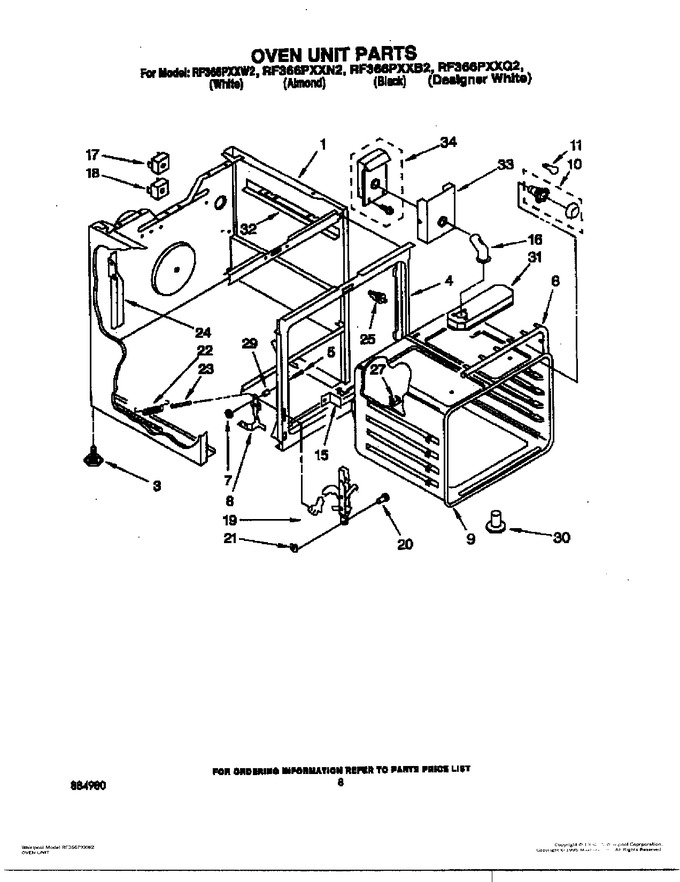

05 - Oven Unit


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330086		Main Chassis (white)		Appelez-nous	-
1	247326		Main Chassis (screw 10-24x1/2)		Appelez-nous	-
1	3181515		Main Chassis (black)		Appelez-nous	-
1	330090		Main Chassis (almond)		Appelez-nous	-
1	WP681414		Main Chassis (screw, 10-16 X 1/2 (2))   (Replaces: 343641)			Immediately	$ 8.47
1	WP681414		Main Chassis (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 8.47
3	WPW10058460		Leg, Leveling (4)   (Replaces: 3150150)			Immediately	$ 8.24
4	3150537		Screw (1)		Appelez-nous	-
4	311056		Screw (2)		Appelez-nous	-
4	3172194		Frame, Front		Appelez-nous	-
5	307985		Pin, Hinge				$ 29.54
6	3148284		Seal, Door		Appelez-nous	-
7	308306		Pushnut		Appelez-nous	-
8	327891		Hinge (l.h.)		Appelez-nous	-
8	327890		Hinge (r.h.)		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
9	311056		Screw (3)		Appelez-nous	-
9	3176611		Oven (30`` Pyro)		Appelez-nous	-
10	W11594027		Socket Assembly   (Replaces: 3150505)			Immediately	$ 87.01
11	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
15	311220		Bracket, Oven (mounting)		Appelez-nous	-
15	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
16	WP308685		Screw, 10a X 1\2 (3)   (Replaces: 253549)			Immediately	$ 7.87
16	3148906		Vent, Oven		Appelez-nous	-
17	314209		Switch, Broil		Appelez-nous	-
17	314215		Screw, No.6		Appelez-nous	-
18	314215		Screw, No.6		Appelez-nous	-
18	314210		Switch, Bake		Appelez-nous	-
19	329710		Channel, Arm (2)		Appelez-nous	-
20	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 15.81
21	307594		Ring, Retainer (2)		Appelez-nous	-
22	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 48.22
23	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 12.74
24	313196		Support, L.h. Channel		Appelez-nous	-
24	313197		Support, R.h. Channel		Appelez-nous	-
24	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
25	310345		Switch, Door				$ 94.86
27	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 87.08
29	309111		Snubber, Door (2)		Appelez-nous	-
30	3169109		Tube, Vent		Appelez-nous	-
31	3169129		Box Vent		Appelez-nous	-
31	WP681414		Screw (3)   (Replaces: 343641)			Immediately	$ 8.47
32	3147646		Support, Chassis (2)		Appelez-nous	-
32	WP488729		Screw, (2) No.8-18 X 1/2   (Replaces: 313638)			Immediately	$ 8.28
33	98520		Screw (2)		Appelez-nous	-
33	3149006		Shield, Box		Appelez-nous	-
34	3171381		Box, Vent		Appelez-nous	-
34	WP488627		Screw (2)   (Replaces: 342055)				$ 8.11
