Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

2 10435504 Frame, Top Brkr Appelez-nous -
3 W11233072 Screw   (Replaces: M0214931) In-Stock Immediately $ 14.72

5 10433329 Mullion, Center (white) Appelez-nous -
5 10433330 Mullion, Center(almond) Appelez-nous -
6 10685502 Gasket, Sealing Appelez-nous -
7 10508701 Shield, Refrig. Light Appelez-nous -
8 10435911 Tray, Drip Appelez-nous -
9 10543601 Heater Mull. Appelez-nous -
10 10430604 Bottom, Frz Appelez-nous -
12 D7714406 Socket, Angle Appelez-nous -
13 10645601 Extrusion, Refr Light Appelez-nous -
14 10580202 Block, Drain Appelez-nous -
15 10437120 Top, Refrigerator Appelez-nous -
16 10573502 Harness-mullion Appelez-nous -
17 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

18 10587101 Clamp, Cap. Tube Appelez-nous -
19 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

20 B0523584 Insulation Per Ft. Appelez-nous -
21 Y00000000 See Note Control Assembly -- (see Page 26 And 27 For Parts Breakdown) Appelez-nous -
22 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

23 10440402 Duct, Frz Air Appelez-nous -
24 M0211520 Screw - Sm Appelez-nous -
25 10433604 Plate, Center Tap Appelez-nous -
26 10481401 Clip, Grounding Appelez-nous -
27 B5733301 Clip Ground Appelez-nous -
28 B5759626 Gasket, Sealing Appelez-nous -
29 10476401 Insert-drain Blk Appelez-nous -
30 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

31 M0211530 Screw Appelez-nous -
32 10450813 Membrane, Breaker (18-19) Appelez-nous -
33 10453001 Cap, Switch Appelez-nous -
34 10565401 Knob, Control Appelez-nous -
35 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

41 10772301 Insulation Appelez-nous -
42 10779602 Insul. Air Duct Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

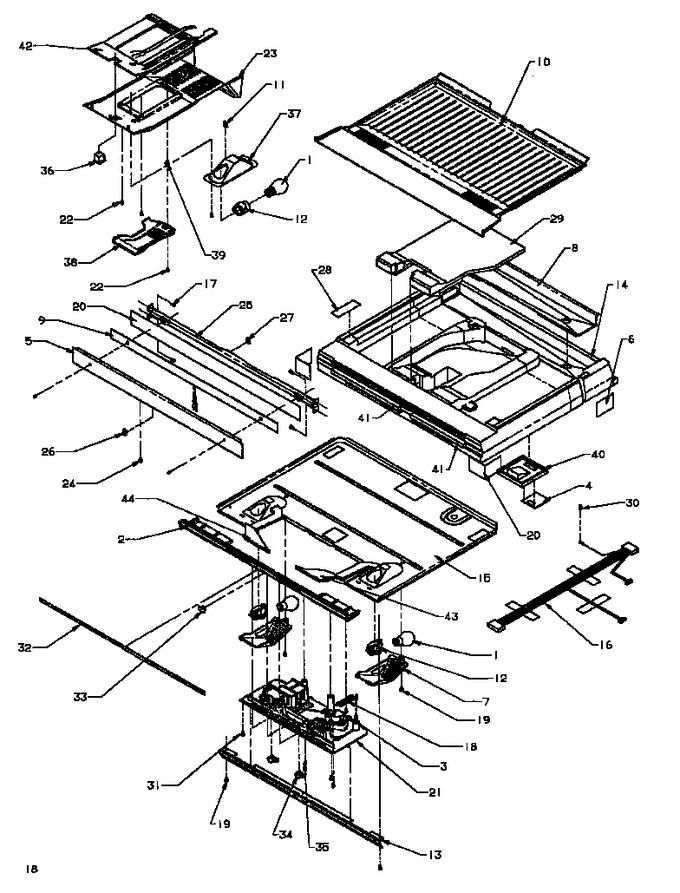

Diagram for TK18R3W (BOM: P1181710W W)
