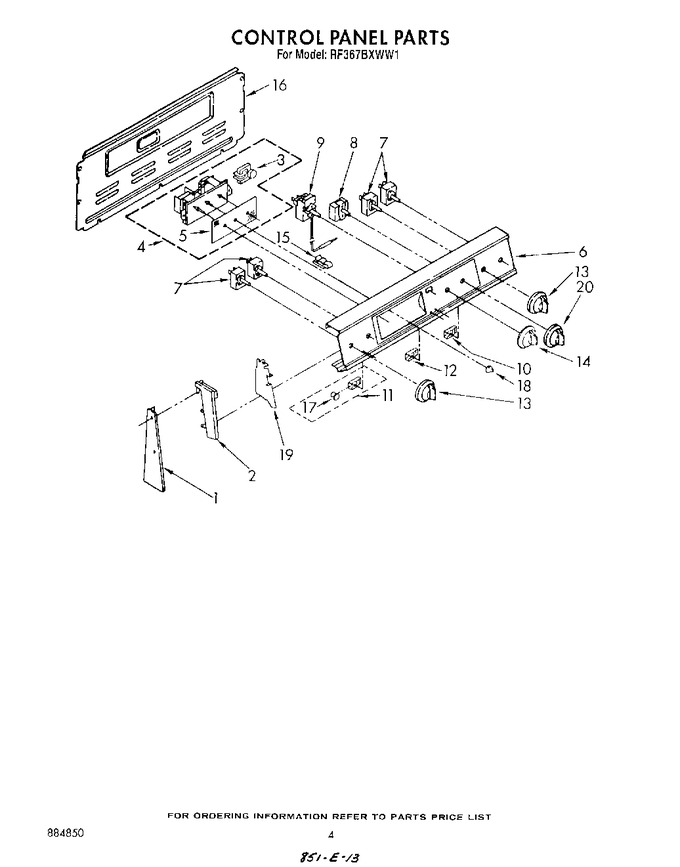

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
1	313189		End Trim R.h.		Appelez-nous	-
1	313188		End Trim L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
3	309822		Motor, Timer		Appelez-nous	-
4	3149505		Timer, Auto		Appelez-nous	-
4	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
5	313513		Glass, Timer		Appelez-nous	-
6	3148844		Panel, Control		Appelez-nous	-
6	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
6	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
7	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.89
7	5500-287		Switch, Infinite (use W/8`` Surface Unit (2))   (Replaces: 3148953)			Immediately	$ 52.39
7	WP3148952		Switch, Infinite (use W/6`` Surface Unit (2))   (Replaces: 3148952)			Immediately	$ 69.51
8	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.89
8	312288		Switch, Selector (5 Position)		Appelez-nous	-
9	3148933		Thermostat, Oven Pyro				$ 181.60
9	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
10	314031		Light, Indicator (2)				$ 62.88
11	313102		Light Indicator				$ 66.48
12	3148719		Light, Indicator		Appelez-nous	-
13	WP3149983		Knob, Infinite (4)   (Replaces: 3149983)				$ 24.39
14	3149988		Knob, Therm.		Appelez-nous	-
15	313570		Tube Clip		Appelez-nous	-
16	313195		Rear Cover Control Panel		Appelez-nous	-
16	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
17	313101		Lens, Light		Appelez-nous	-
18	313311		Spring, Knob		Appelez-nous	-
18	330206		Knob, Timer (3)		Appelez-nous	-
19	313608		Shield, Glass (2)		Appelez-nous	-
19	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
20	3149986		Knob, Selector				$ 23.95
