01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts

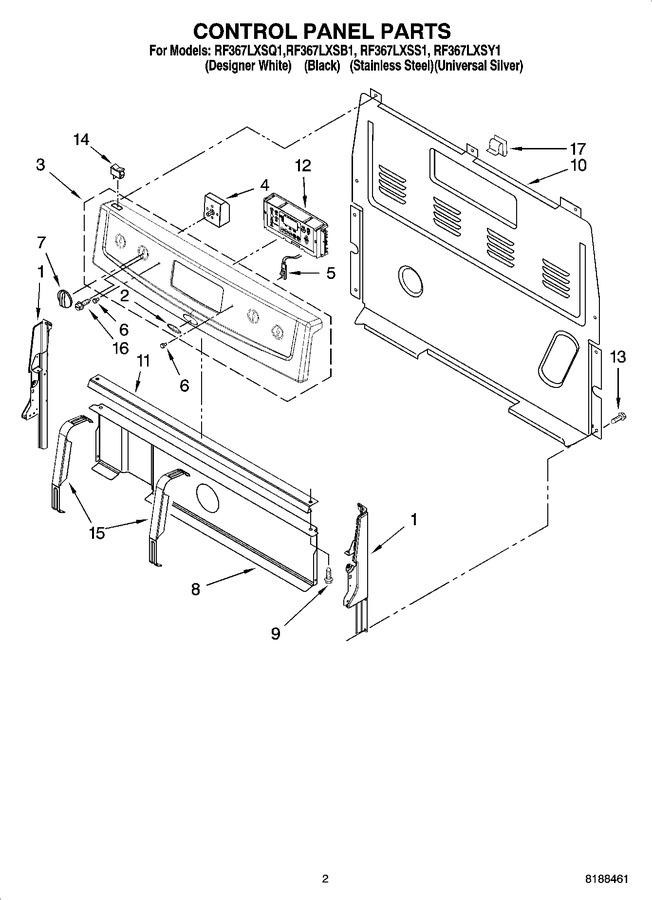

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black Left)   (Replaces: W10009080)				$ 146.50
1	W11219665		Endcap (black Right)   (Replaces: W10009090)				$ 40.44
1	W11219365		Endcap (white Left)   (Replaces: W10009040)				$ 40.43
1	W11219370		Endcap (white Right)   (Replaces: W10009050)				$ 57.93
2	9757609		Nameplate				$ 33.27
3	9762022		Panel, Control (stainless)		Appelez-nous	-
3	9762021		Panel, Control (black)		Appelez-nous	-
3	9762019		Panel, Control (white)		Appelez-nous	-
4	5500-287		Switch, Infinite (lr, Rr)   (Replaces: 3148951)			Immediately	$ 52.39
4	WP9758060		Switch, Infinite (lf, Rf)   (Replaces: 9758060)			Immediately	$ 83.13
5	WP8523265		Light, Ind. (2)   (Replaces: 8523265)			Immediately	$ 86.31
6	WP3196068		Lens, Light (2)   (Replaces: 3196068)			Immediately	$ 6.26
7	WP9761962		Knob, Infinite (4) (white)   (Replaces: 9761962)			Immediately	$ 19.67
7	WP9761964		Knob, Infinite (4) (black)   (Replaces: 9761964)			Immediately	$ 21.24
8	8523280		Shield, Heat		Appelez-nous	-
9	3196166		Screw				$ 7.01
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 208.61
11	9762095		Brkt-mntg, Console		Appelez-nous	-
12	W10114380		Control, Range (white)		Appelez-nous	-
12	W10114381		Control, Range (black)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
14	3149360		Switch, Rocker (white)				$ 89.01
14	WP4314961		Switch, Rocker (black)   (Replaces: 3148564)				$ 89.48
15	9762078		Brkt, Mntg Eoc				$ 38.13
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.19
17	WP8273564		Clip   (Replaces: 8273564)				$ 12.06
