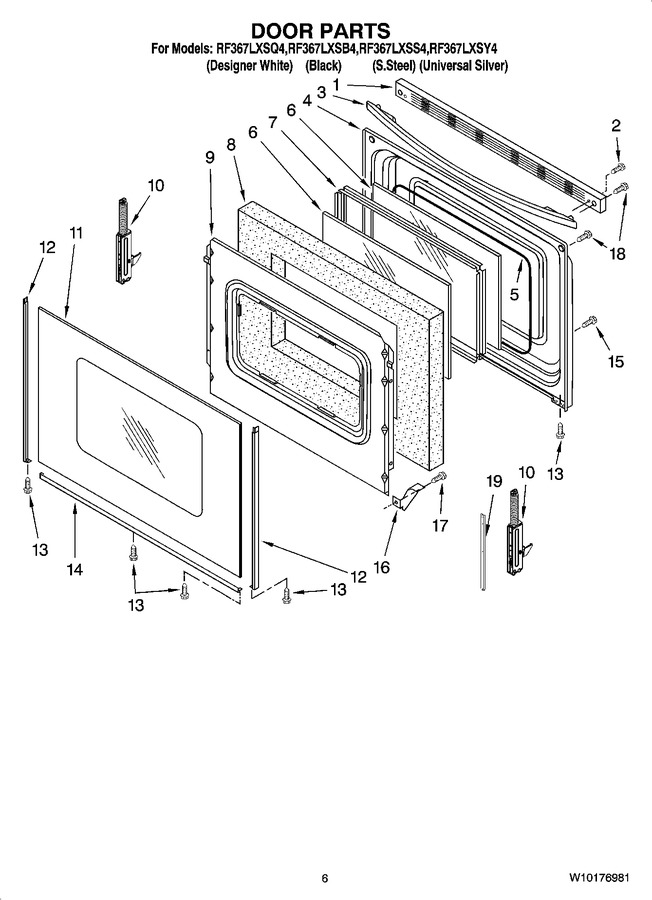

05 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10067560		Trim, Top (universal Silver)		Appelez-nous	-
1	WP9762391		Trim, Top (black Stainless)   (Replaces: 9762394)				$ 208.97
1	WP9762391		Trim, Top (black)   (Replaces: 9762391)				$ 208.97
1	9761975		Trim, Top (white)				$ 82.31
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 11.03
3	9761982		Handle, Door (white)				$ 125.85
3	9761985		Handle, Door (universal Silver)		Appelez-nous	-
3	9761983		Handle, Door (black)				$ 116.42
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	8522414		Seal, Window				$ 160.59
6	WP8053948		Glass, Inner (2)   (Replaces: 9758162)				$ 178.28
7	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 90.09
8	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 101.37
9	W11539580		Retainer, Insltn   (Replaces: 9761357)				$ 233.31
10	W10347464		Hinge, Door (2) (stnls/unv Slv Mdl.)   (Replaces: 9761496)			Immediately	$ 133.98
10	W10347466		Hinge, Door (2) (white/black Mdl.)   (Replaces: 9761493)			Immediately	$ 219.84
11	WPW10118455		Glass, Outer Door (black)   (Replaces: W10075990)			Immediately	$ 332.70
11	WPW10118454		Glass, Outer Door (white)   (Replaces: W10075980)				$ 324.91
11	W10154806		Glass, Outer Door (black Stainless)		Appelez-nous	-
12	8184858		Trim, Side (gray Right)   (Replaces: W10113925)				$ 168.85
12	W10761018		Trim, Side (black Left)   (Replaces: 8523171)			Immediately	$ 53.77
12	W10761014		Trim, Side (black Right)   (Replaces: 8523165)			Immediately	$ 72.96
12	WP8523172		Trim, Side (white Left)   (Replaces: 8523172)			Immediately	$ 69.93
12	WP8523166		Trim, Side (white Right)   (Replaces: 8523166)			Immediately	$ 84.23
12	8184858		Trim, Side (gray Left)   (Replaces: W10113926)				$ 168.85
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
14	W10067550		Trim, Bottom (universal Silver)		Appelez-nous	-
14	WP8523180		Trim, Bottom (black Stainless)   (Replaces: 8523180)				$ 169.00
14	W11594186		Trim, Bottom (white)   (Replaces: 8523175)			Immediately	$ 61.37
14	WP8523177		Trim, Bottom (black)   (Replaces: 8523177)			Immediately	$ 165.86
15	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
16	3196794		Bracket, Window (2)				$ 24.34
17	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
18	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
19	W11502236		Strap, Door   (Replaces: W10113759)			Immediately	$ 27.68
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	WP3196154		Screw, Ground   (Replaces: 3196154)				$ 8.44
	W11244557		Screw   (Replaces: 3196173)				$ 14.29
	313660		Clip, Ground Wire		Appelez-nous	-
	3184020		Wire, Ground   (Replaces: 8523279)				$ 86.92
	WPW10144763		Tie, Harness   (Replaces: W10144763)				$ 7.93
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
	W10111777		Harness, Wire (main)		Appelez-nous	-
	W10084710		Harness, Wire (sensor/dr Switch)				$ 136.05
	W10111791		Harness, Wire (cooktop Right)		Appelez-nous	-
	W10111767		Harness, Wire (cooktop Left)		Appelez-nous	-
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	W11839019		Anti-tip Kit   (Replaces: W10017440)			Immediately	$ 28.54
	3191048		Cleaner, Glass		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	261582		Grease		Appelez-nous	-
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 94.14
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
