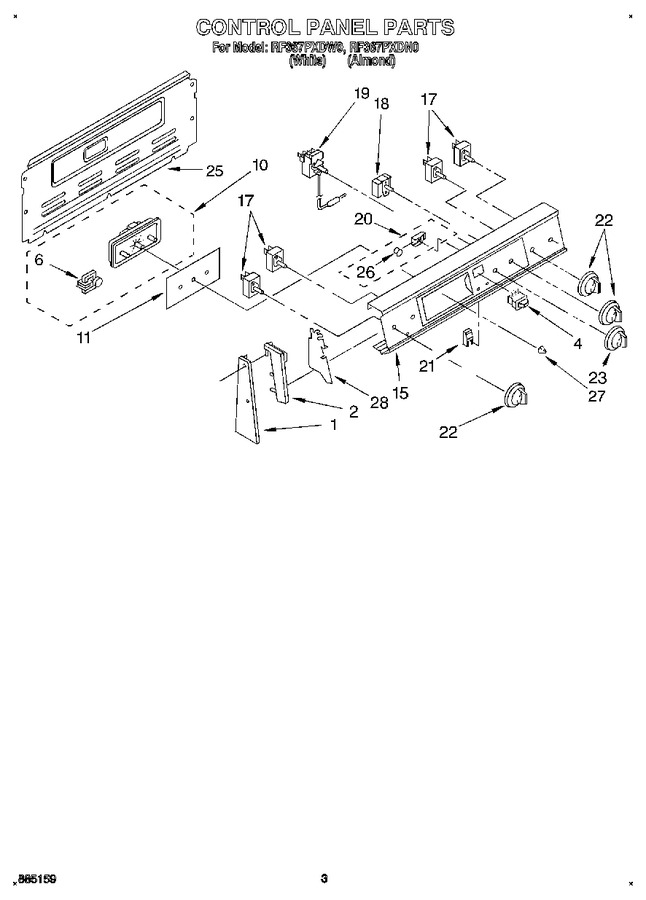

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187671		End Trim (right Hand)		Appelez-nous	-
1	3187672		End Trim (left Hand)		Appelez-nous	-
1	3169366		End Trim (screw (4))		Appelez-nous	-
2	3187791		End Cap (right Hand)		Appelez-nous	-
2	3187792		End Cap (left Hand)		Appelez-nous	-
4	3182717		Switch, Rocker		Appelez-nous	-
6	309822		Motor, Timer		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
10	661458		Timer, Clock (includes No.6)		Appelez-nous	-
11	313513		Glass, Timer		Appelez-nous	-
15	3189222		Panel, Control		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
17	WP3149400		Switch, Infinite (8`` (2))   (Replaces: 3148954)			Immediately	$ 90.51
17	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
17	WP3148952		Switch, Infinite (6`` (2))   (Replaces: 3148952)			Immediately	$ 69.51
18	3169311		Switch, Selector (5 Position)		Appelez-nous	-
18	308119		Screw (2)		Appelez-nous	-
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
19	3169526		Thermostat, 0ven		Appelez-nous	-
20	314031		Light, Indicator (oven Unit) (includes Illus. 26)				$ 62.88
21	3169457		Light, Indicator (surface Unit) (includes Illus. 26)		Appelez-nous	-
22	WP3196231		Knob, (5) (inf. & Selector)   (Replaces: 3188721)			Immediately	$ 22.00
23	3188724		Knob, Oven Temp.		Appelez-nous	-
25	3187332		Rear Cover		Appelez-nous	-
25	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
26	313101		Lens, Amber (2)		Appelez-nous	-
27	3169182		Knob, Timer (3)		Appelez-nous	-
28	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
28	313608		Shield, Glass (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
