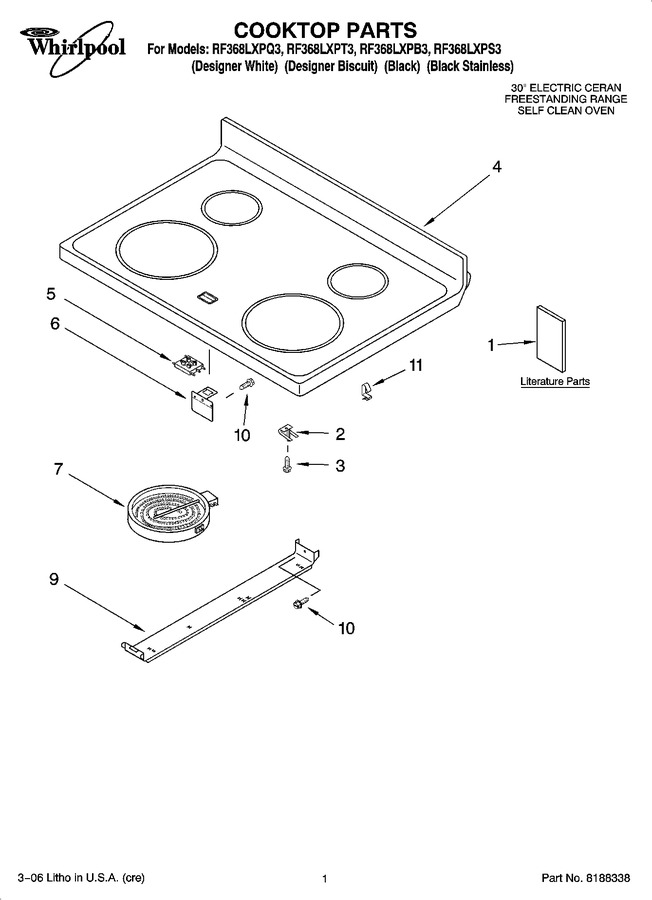

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10017630 | Guide, Use & Care |
|
- | |||||
| 1 | 9757142 | Literature (english/spanish) |
|
- | |||||
| 1 | 9757143 | Literature (english/french) |
|
- | |||||
| 1 | 9758377 | Instructions, Installation Template, Anti-tip |
|
- | |||||
| 1 | 9756207 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | 9755856 | Cooktop (black (b & S Model)) |
|
- | |||||
| 4 | 9755854 | Cooktop (white (q Model)) |
|
- | |||||
| 4 | 9755855 | Cooktop (biscuit (t Model)) |
|
- | |||||
| 5 | 8523739 | Light, Indicator (hot Surface) |
|
$ 120.71 | |||||
| 6 | 8523741 | Bracket, Ind Light |
|
- | |||||
| 7 | W11047722 | Element, Surface (2500 W - Rf) (Replaces: 8273992) |
|
Immediately | $ 132.46 | ||||
| 7 | W11171119 | Element, Surface (1200 W - Rr) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 9 | 8272791 | Bracket, Element |
|
- | |||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11 | 3195813 | Clip, Cooktop (2) |
|
- |
