SELECT A DIAGRAM
01 - Compressor Compartment Parts
02 - Fz Door Parts

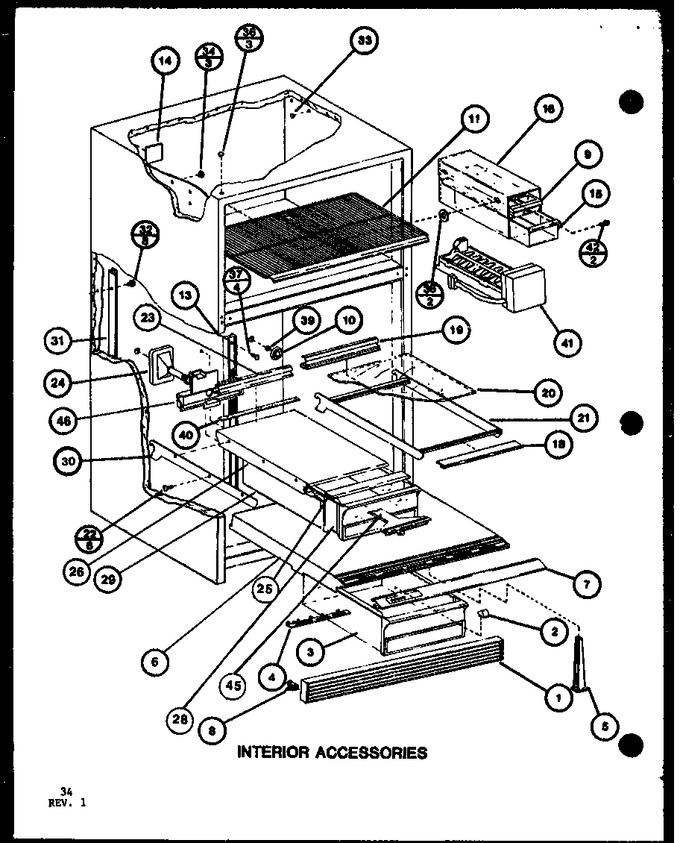

03 - Interior Accessories
04 - Rear Components
05 - Ref Door Parts
06 - Ref Fz Functional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520502 | Grille-toe |
|
- | |||||
| 2 | C8908301 | Knob Humidity A-k |
|
- | |||||
| 3 | D7581005 | Net-pan,crisper |
|
- | |||||
| 4 | D7587704 | Slide Humidity |
|
- | |||||
| 5 | D7602202 | Crisper Support Post |
|
- | |||||
| 6 | D7616506 | Crisper Top,assy |
|
- | |||||
| 7 | D7616607 | Trim, Crisper Top A |
|
- | |||||
| 8 | M0117301 | Clip, Grille |
|
- | |||||
| 9 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 10 | M0310314 | Plug |
|
- | |||||
| 11 | D7580702 | Shelf, Frz |
|
- | |||||
| 13 | D7599001 | Ladder Center |
|
- | |||||
| 14 | D7604903 | Cover-fl Tb/plug |
|
- | |||||
| 15 | D7620003 | Ice Bin |
|
- | |||||
| 16 | D7620101 | Rack, Ice Service |
|
- | |||||
| 18 | C8913501 | Trim, Shelf A |
|
- | |||||
| 19 | C8913601 | Trim, Shelf |
|
- | |||||
| 20 | D7421218 | Glass Shelf |
|
- | |||||
| 21 | D7602304 | Frame Cont. Shelf A |
|
- | |||||
| 22 | M0213129 | Screw |
|
- | |||||
| 23 | C8831808 | Trim Shelf |
|
- | |||||
| 24 | D7701203 | Grommet |
|
- | |||||
| 25 | C8913505 | Trim Shelf |
|
- | |||||
| 26 | D7698209 | Top Meatkeeper |
|
- | |||||
| 28 | D7698305 | Net Pan, Meatkeeper |
|
- | |||||
| 29 | D7698101 | Sleeve M.k |
|
- | |||||
| 30 | D7600031 | Side Plate Mk |
|
- | |||||
| 31 | D7599104 | Ladder, Sides |
|
- | |||||
| 31 | D7599102 | Ladder, Side, Slotted Mtg. Hol |
|
- | |||||
| 32 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 33 | M0311301 | Plug Button |
|
- | |||||
| 34 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 8.21 | ||||
| 36 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 8.21 | ||||
| 36 | M0310716 | Plug |
|
- | |||||
| 37 | M0230923 | Screw |
|
- | |||||
| 38 | M0270508 | Washer |
|
- | |||||
| 39 | B8362502 | Insul. Mk Plug |
|
- | |||||
| 40 | M0275163 | Tape Per Roll |
|
- | |||||
| 41 | D7567104 | Ice Maker Assy |
|
- | |||||
| 42 | M0219559 | Screw |
|
- | |||||
| 45 | D7697902 | M.k. Control Slide |
|
- | |||||
| 46 | D7698002 | Housing Slide Mk |
|
- | |||||
| NI | R0179085 | Crisper Top Assy |
|
- | |||||
| NI | D7714619 | Glass Shelf Assy |
|
- | |||||
| NI | D7714620 | Glass Shelf Assy |
|
- | |||||
| NI | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 |
