01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts

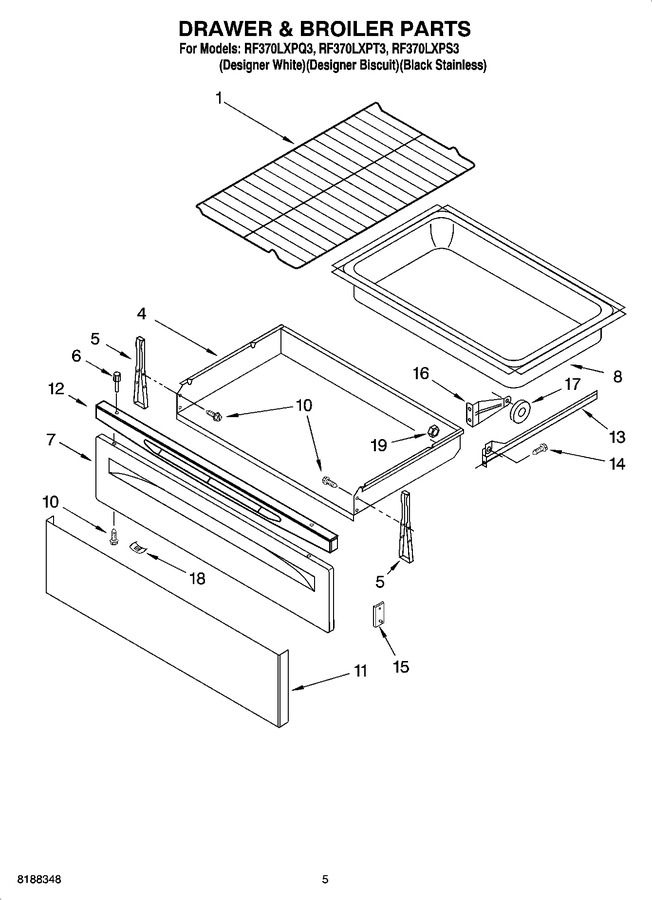

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: 3195710)			Immediately	$ 46.84
4	9761030		Drawer, Storage		Appelez-nous	-
5	W10838990		Bracket, Drawer(2)   (Replaces: 9758200)			Immediately	$ 88.95
6	3196815		Rivet, Push (2) (almond)		Appelez-nous	-
6	WP3196813		Rivet, Push (2) (black)   (Replaces: 3196813)			Immediately	$ 11.20
6	WP3196814		Rivet, Push (2) (white)   (Replaces: 3196814)			Immediately	$ 11.07
7	W11230488		Drawer Front (black)   (Replaces: 8053341)				$ 212.44
7	W11230476		Drawer Front (biscuit)   (Replaces: 8272501)				$ 206.02
7	W11219377		Drawer Front (white)   (Replaces: 8053339)				$ 212.57
8	9761032		Liner, Drawer		Appelez-nous	-
10	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
11	9755798		Panel, Stainless		Appelez-nous	-
12	9757237		Handle, Stainless		Appelez-nous	-
13	8274191		Rail Assy, Drawer (right)		Appelez-nous	-
13	8274190		Rail Assy, Drawer (left)		Appelez-nous	-
14	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
15	8522669		Spacer		Appelez-nous	-
16	W10838990		Bracket, Roller   (Replaces: 9758200)			Immediately	$ 88.95
17	814229		Roller   (Replaces: 9751138)			Immediately	$ 56.92
18	WP9781235		Clip   (Replaces: 9781235)				$ 12.56
19	WP487939		Nut   (Replaces: 487939)				$ 8.62
