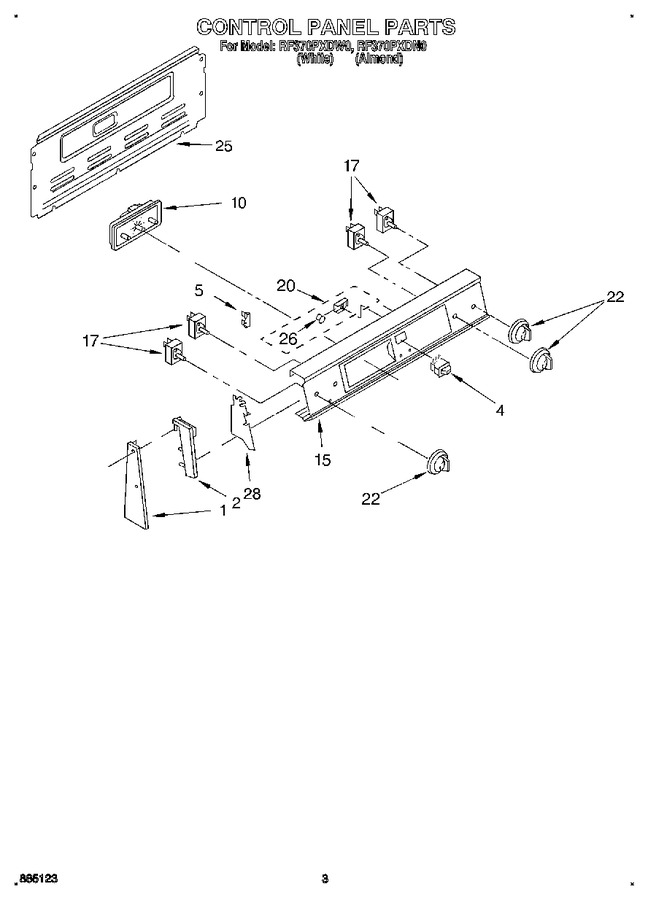

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187671		End Trim R.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.62
1	3187672		End Trim L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	3187792		End Cap L.h.		Appelez-nous	-
2	3187791		End Cap R.h.		Appelez-nous	-
4	3182717		Switch, Rocker		Appelez-nous	-
5	3187848		Fuse, Thermal		Appelez-nous	-
10	3195182		Control, Electronic		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.68
15	3189219		Panel, Control		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.62
17	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
17	WP3148952		Switch, Infinite (6`` (2))   (Replaces: 3148952)			Immediately	$ 62.56
17	WP3149400		Switch, Infinite (8`` (2))   (Replaces: 3148954)			Immediately	$ 81.46
20	3169457		Light, Indicator		Appelez-nous	-
22	WP3196231		Knob, (5) (inf. & Selector)   (Replaces: 3188721)			Immediately	$ 19.80
25	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.62
25	3187332		Rear Cover		Appelez-nous	-
26	313101		Lens, Amber (2)		Appelez-nous	-
28	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.68
28	313608		Shield, Glass (2)		Appelez-nous	-
