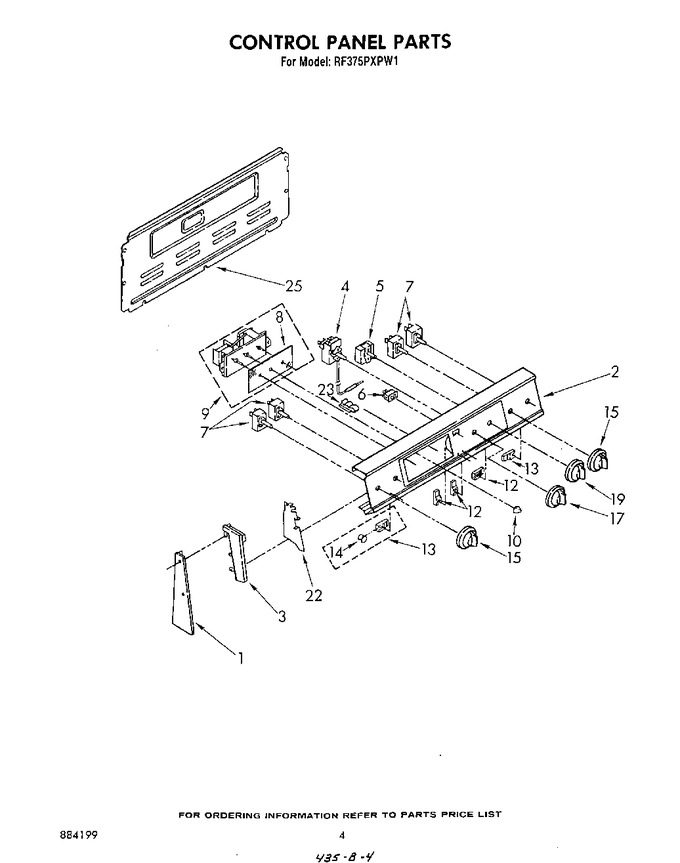

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313189 | End Trim R.h. |
|
- | |||||
| 1 | 313188 | End Trim L.h. |
|
- | |||||
| 1 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 1 | WP3390631 | Screw, 10a X 3/8 (2) (Replaces: 309112) |
|
$ 8.25 | |||||
| 2 | 312604 | Screw 8-18 X 5/8 (4) |
|
- | |||||
| 2 | 313242 | Panel, Control |
|
- | |||||
| 2 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 8.47 | ||||
| 3 | 254225 | Screw, 8bt X 1/4 (4) |
|
- | |||||
| 3 | 313231 | End Cap L.h. |
|
- | |||||
| 3 | 313230 | End Cap R.h. |
|
- | |||||
| 4 | WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 8.30 | |||||
| 4 | 313858 | Thermostat, Oven |
|
- | |||||
| 5 | 312288 | Switch, Selector (5 Position) |
|
- | |||||
| 5 | WP486579 | Screw, 8-32 X 1/4 (2) (Replaces: 311865) |
|
$ 7.89 | |||||
| 6 | WP4314961 | Switch, Rocker (Replaces: 314134) |
|
$ 93.95 | |||||
| 7 | WP3149400 | Switch, Infinite (use W/8`` Surface Unit (2)) (Replaces: 311859) |
|
Immediately | $ 90.51 | ||||
| 7 | WP486579 | Switch, Infinite (screw, 8-32 X 1/4 (8)) (Replaces: 311865) |
|
$ 7.89 | |||||
| 7 | WP3149404 | Switch, Infinite (use W/6`` Surface Unit (2)) (Replaces: 311857) |
|
Immediately | $ 61.45 | ||||
| 8 | 313513 | Glass, Timer |
|
- | |||||
| 9 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 11.87 | ||||
| 9 | 313511 | Timer, Auto |
|
- | |||||
| 10 | 313311 | Spring, Knob (2) |
|
- | |||||
| 10 | 330206 | Knob, Timer (3) |
|
- | |||||
| 12 | 314031 | Light, Indicator (250v) (3) (includes Illus. 14) |
|
$ 62.88 | |||||
| 13 | 313102 | Light, Indicator (125v) (surface Unit) (2) (includes Illus. 14) |
|
$ 66.48 | |||||
| 14 | 313101 | Lens, Amber (5) |
|
- | |||||
| 15 | 330171 | Knob, Control |
|
- | |||||
| 17 | 330169 | Knob, Control |
|
- | |||||
| 17 | 310410 | Screw (2) |
|
- | |||||
| 19 | WP688805 | Spring, Knob (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 19 | 330172 | Knob |
|
- | |||||
| 22 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 11.87 | ||||
| 22 | 313608 | Shield (2) |
|
- | |||||
| 23 | 313570 | Tube Clip |
|
- | |||||
| 25 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 25 | 313195 | Cover, Rear |
|
- |
