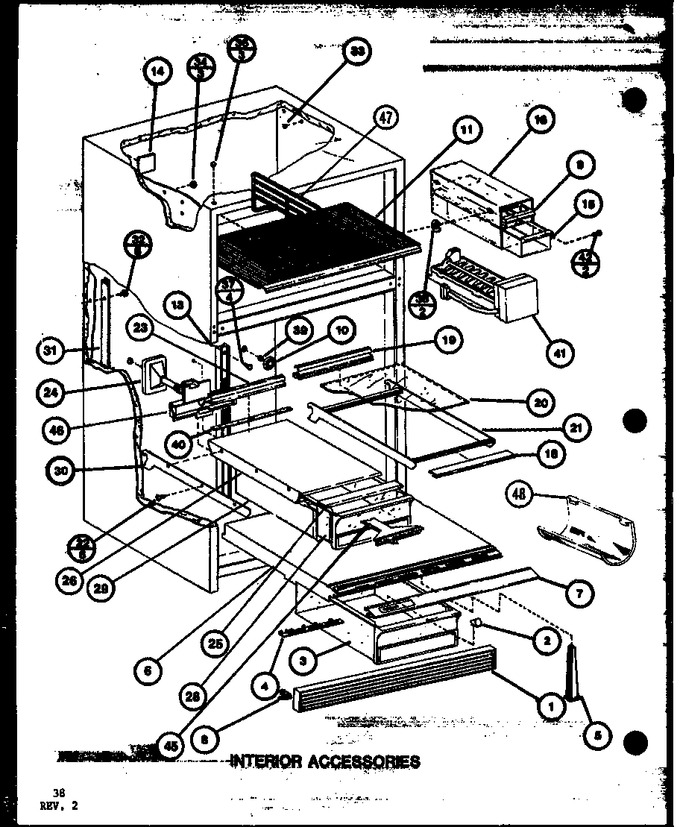

03 - Interior Accessories
04 - Page 18
05 - Rear Components
06 - Ref Door Parts
07 - Ref Fz Functional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520505 | Grille-toe |
|
- | |||||
| 2 | C8908301 | Knob Humidity A-k |
|
- | |||||
| 3 | D7581025 | Pan Crisper |
|
- | |||||
| 4 | D7587705 | Slide Humidity |
|
- | |||||
| 5 | D7602202 | Crisper Support Post |
|
- | |||||
| 6 | D7616506 | Crisper Top,assy |
|
- | |||||
| 7 | D7616607 | Trim, Crisper Top A |
|
- | |||||
| 8 | M0117301 | Clip, Grille |
|
- | |||||
| 10 | M0310314 | Plug |
|
- | |||||
| 11 | D7580704 | Shelf, Frz |
|
- | |||||
| 13 | D7599001 | Ladder Center |
|
- | |||||
| 18 | C8913501 | Trim, Shelf A |
|
- | |||||
| 19 | C8913601 | Trim, Shelf |
|
- | |||||
| 20 | D7421218 | Glass Shelf |
|
- | |||||
| 21 | D7602304 | Frame Cont. Shelf A |
|
- | |||||
| 22 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 23 | C8831808 | Trim Shelf |
|
- | |||||
| 24 | D7701203 | Grommet |
|
- | |||||
| 25 | C8913505 | Trim Shelf |
|
- | |||||
| 26 | D7698213 | Top Meat Keeper |
|
- | |||||
| 28 | D7698316 | Meat Pan |
|
- | |||||
| 29 | D7698105 | Sleeve, Meat Keeper |
|
- | |||||
| 30 | D7600031 | Side Plate Mk |
|
- | |||||
| 31 | D7599103 | Ladder Side |
|
- | |||||
| 32 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 33 | M0311301 | Plug Button |
|
- | |||||
| 36 | M0310720 | Plug |
|
- | |||||
| 36 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 8.21 | ||||
| 36 | M0310716 | Plug |
|
- | |||||
| 37 | M0230923 | Screw |
|
- | |||||
| 39 | B8362502 | Insul. Mk Plug |
|
- | |||||
| 40 | M0275163 | Tape Per Roll |
|
- | |||||
| 41 | Y00000000 | See Note Factory Installed Ice Maker |
|
- | |||||
| 45 | D7697903 | M.k. Control Slide |
|
- | |||||
| 46 | D7698003 | Housing M.k. Slide |
|
- | |||||
| 47 | D7806001 | Shelf Wire |
|
- | |||||
| 48 | D7547604 | Bottle Rack |
|
- | |||||
| NI | D7714620 | Glass Shelf Assy |
|
- | |||||
| NI | R0179094 | Crisper Top Assy |
|
- | |||||
| NI | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 | |||||
| NI | D7714619 | Glass Shelf Assy |
|
- |
