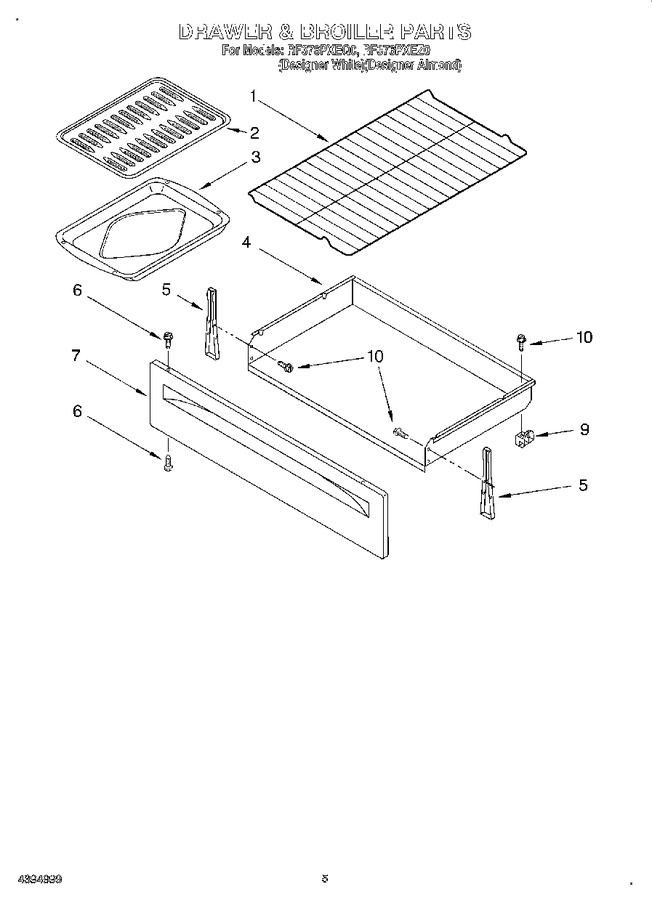

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: 3195710)			Immediately	$ 46.84
2	WP3195996		Grill, Broiler   (Replaces: 3195996)				$ 98.65
3	WP3196076		Pan, Broiler   (Replaces: 3196076)				$ 330.36
4	3186096		Drawer, Storage		Appelez-nous	-
5	WP3400832		Screw (4)   (Replaces: 3196168)			Immediately	$ 8.18
5	W10838990		Bracket, Drawer (2)   (Replaces: 3186098)			Immediately	$ 88.95
6	3196559		Screw, Panel (2) (almond)		Appelez-nous	-
6	3196558		Screw, Panel (2) (white)		Appelez-nous	-
7	W11219377		Panel, Drawer Front (white)   (Replaces: 3186101)				$ 212.57
7	3195094		Panel, Drawer Front (almond)		Appelez-nous	-
9	WP8053334		Glide, Drawer (2)   (Replaces: 3195062)			Immediately	$ 7.84
10	WP3400832		Screw (8)   (Replaces: 3196168)			Immediately	$ 8.18
