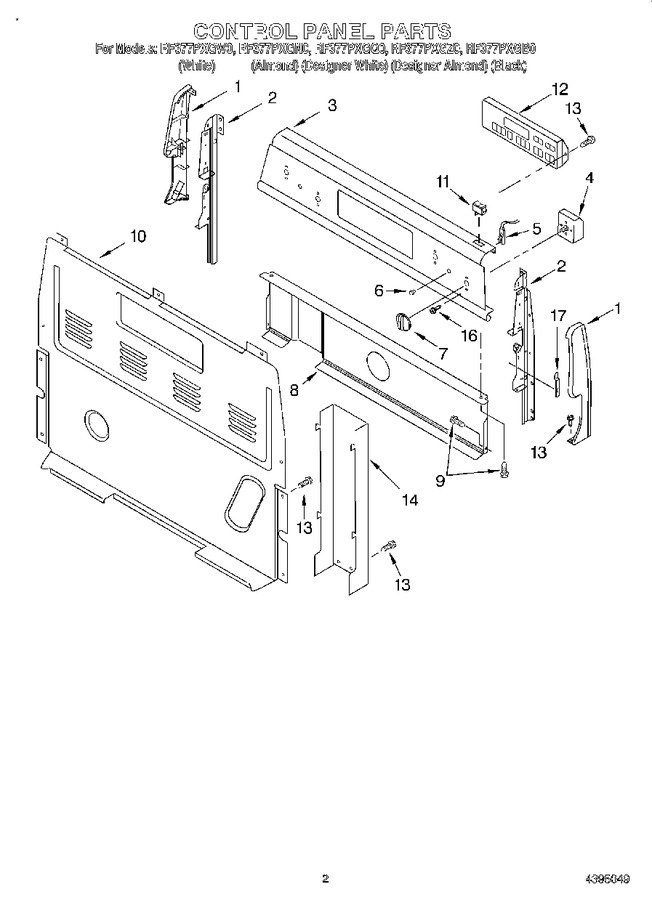

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186190		Endcap (left Hand White)		Appelez-nous	-
1	3186188		Endcap, Left Hand (black)		Appelez-nous	-
1	3186189		Endcap, Right Hand (black)		Appelez-nous	-
1	3186193		Endcap (right Hand Almond)		Appelez-nous	-
1	3186191		Endcap (right Hand White)		Appelez-nous	-
1	3186192		Endcap, Left Hand (almond)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
3	3186174		Panel, Backguard (almond)		Appelez-nous	-
3	3186171		Panel, Backguard (black)		Appelez-nous	-
3	3186173		Panel, Backguard (white)		Appelez-nous	-
4	WP3148952		Switch, Infinite (right Front)   (Replaces: 3148952)			Immediately	$ 69.51
4	WP3149400		Switch, Infinite (right Rear)   (Replaces: 3148954)			Immediately	$ 90.51
5	313102		Light, Indicator (surface Unit (2))				$ 66.48
6	WP3196068		Lens, Light (2)   (Replaces: 3196068)			Immediately	$ 6.26
7	3196232		Knob, Infinite (4) (white)				$ 16.71
7	WP3196231		Knob, Infinite (4) (black)   (Replaces: 3196231)			Immediately	$ 22.00
7	3196233		Knob, Infinite (4) (almond)				$ 15.63
8	3196083		Shield, Heat		Appelez-nous	-
9	W10276642		Screw   (Replaces: 4449746)				$ 6.41
10	WP8272473		Cover, Upper   (Replaces: 3195163)				$ 219.04
11	WP4314961		Switch, Rocker (black)   (Replaces: 3148564)				$ 93.95
11	3169466		Switch, Rocker (almond)		Appelez-nous	-
11	3149360		Switch, Rocker (white)				$ 89.01
12	6610158		Control, Range (almond)		Appelez-nous	-
12	6610157		Control, Range (white)		Appelez-nous	-
12	6610156		Control, Range (black)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WPW10326122		Box, Cover   (Replaces: 3195133)				$ 139.60
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
17	3196200		Clip, Spring (2)				$ 10.45
