01 - Top And Console Parts
02 - Cabinet Parts

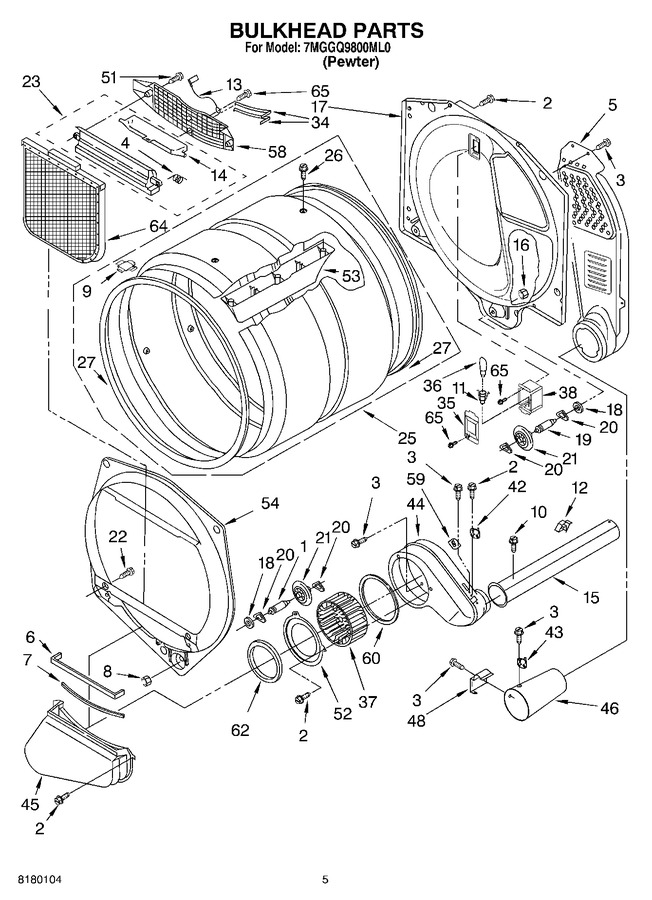

03 - Bulkhead Parts
04 - 8318276 Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 3399508) |
|
Immediately | $ 62.21 | ||||
| 2 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 3 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 4 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.59 | |||||
| 5 | W11168650 | Air Duct Assembly (Replaces: 3394346) |
|
$ 97.66 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.97 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.97 | ||||
| 8 | WP3359452 | Nut, 3/8 X 16 (r.h.) (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 9 | 8066086 | Drum, Hole Plug |
|
$ 10.75 | |||||
| 10 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.50 | |||||
| 11 | W11700522 | Socket Assembly (Replaces: 3403634) |
|
$ 73.15 | |||||
| 12 | WP3388229 | Clip (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 13 | 3392258 | Ground-sensor |
|
- | |||||
| 14 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 203.72 | ||||
| 15 | 279936 | Exhaust Pipe (Replaces: 8318486) |
|
$ 146.84 | |||||
| 16 | 3387709 | Nut, 3/8-16 (l.h.) |
|
$ 5.60 | |||||
| 17 | W11299301 | Bulkhead, Rear (Replaces: 8520836) |
|
$ 247.75 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 14.03 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 3399509) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 22 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 695240) |
|
Immediately | $ 7.79 | ||||
| 23 | W11129408 | Outlet Housing Assembly (Replaces: 3394985) |
|
Immediately | $ 53.28 | ||||
| 25 | W10545923 | Complete Drum Assembly (Replaces: 8318215) |
|
$ 436.76 | |||||
| 26 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 27 | 280114 | Seal, Drum (Replaces: 697694) |
|
Immediately | $ 70.82 | ||||
| 34 | WP3387223 | Electrode, Sensor (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 35 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 31.09 | |||||
| 36 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 13.66 | ||||
| 37 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 59.07 | ||||
| 38 | 3977373 | Bracket, Drum Light |
|
$ 105.79 | |||||
| 42 | WP8318268 | Thermostat, Internal-bias (Replaces: 8318268) |
|
Immediately | $ 80.57 | ||||
| 43 | W11050897 | Thermostat, High-limit 205~f (96~c) (Replaces: 3403140) |
|
Immediately | $ 15.30 | ||||
| 44 | W10888146 | Housing, Blower (Replaces: 8541568) |
|
$ 101.70 | |||||
| 45 | 8530036 | Lint Duct Assembly |
|
$ 75.27 | |||||
| 46 | WP8066047 | Funnel, Burner (Replaces: 8066047) |
|
$ 149.26 | |||||
| 48 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 51 | WP3387230 | Screw, 10-16 X 1 (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 52 | 279780 | Cover, Blower (includes Illus. 62) (Replaces: 697771) |
|
$ 92.95 | |||||
| 53 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 91.02 | ||||
| 54 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 208.03 | |||||
| 58 | W11086603 | Grill, Outlet (Replaces: 8299979) |
|
Immediately | $ 35.14 | ||||
| 59 | WP3392519 | Thermal Fuse (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 60 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.88 | ||||
| 62 | WP8566209 | Seal, Lint Duct (Replaces: 697769) |
|
$ 55.45 | |||||
| 64 | W10120998 | Lint, Screen (Replaces: 3390721) |
|
$ 67.16 | |||||
| 65 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 65 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.79 | ||||
| 65 | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 11.75 | |||||
| 65 | WP4396174 | Paint, Touch-up (1/2oz.) (pewter) (Replaces: 4396174) |
|
$ 28.20 | |||||
| 65 | 4396175 | Paint, Pressurized Spray (12 Oz.) (pewter) |
|
- | |||||
| 65 | N/A | Accessory Parts |
|
- | |||||
| 65 | 4392067 | Kit, Dryer Repair |
|
Immediately | $ 62.25 | ||||
| 65 | 346764 | Kit, Hold-down (gas Dryer Mobile Home Installation) |
|
- | |||||
| 65 | 8212450A | Dry Rack (Replaces: 3406911) |
|
Immediately | $ 83.99 |
