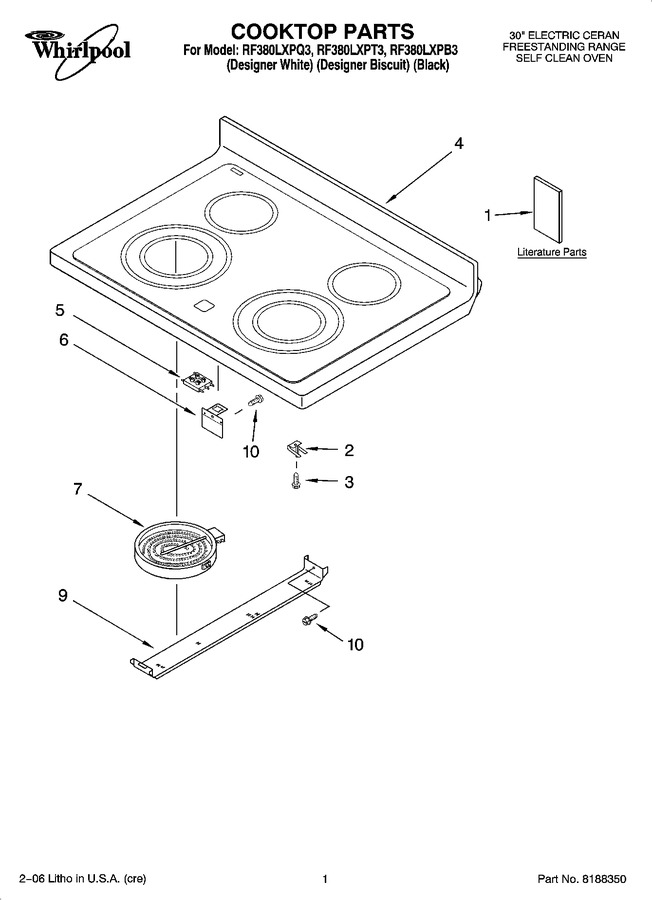

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9758377 | Instructions, Installation Template |
|
- | |||||
| 1 | 9757143 | Instructions, Installation (w/ French) |
|
- | |||||
| 1 | 9757142 | Installation, Instructions (w/span) |
|
- | |||||
| 1 | W10017630 | Literature (owners Manual) |
|
- | |||||
| 1 | 9759917 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | 9759845 | Cooktop (biscuit) |
|
- | |||||
| 4 | 9759846 | Cooktop (black) |
|
- | |||||
| 4 | 9759844 | Cooktop (white) |
|
- | |||||
| 5 | 8523739 | Light, Indicator (hot Surface) |
|
$ 120.71 | |||||
| 6 | 8523741 | Bracket, Ind Light |
|
- | |||||
| 7 | W10823711 | Element, Surface (1200 W - Lr,rr) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 7 | W10823692 | Element, Surface (2400/1200 W Lf, Rf) (Replaces: 9759351) |
|
Immediately | $ 227.59 | ||||
| 9 | 8272791 | Bracket, Element |
|
- | |||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 |
